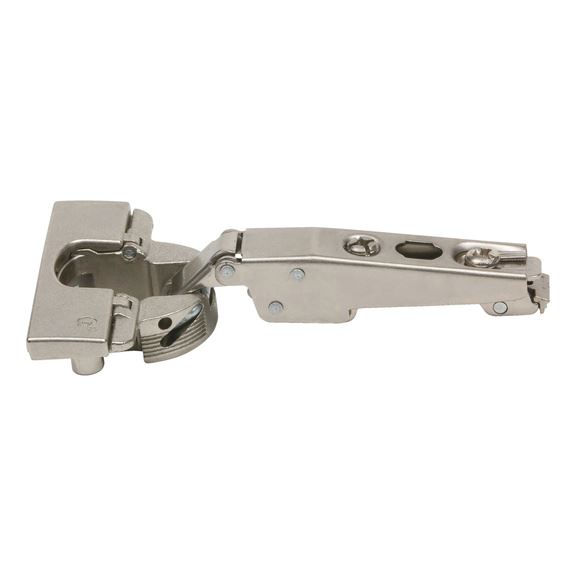

Concealed hinge, Nexis Impresso 110

Article No. F014072520

Concealed hinge Nexis 110 Impresso HNGE-NEXIMP-45/48-CRN-(NI)-110DGR GRASS NEXIS IMPRESSO

€1.78 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

Compatible with soft-close systems

Specified dimensions not binding. Subject to technical changes!

Compatible with soft-close systems

Specified dimensions not binding. Subject to technical changes!

Products specifications

Door stop	Corner
Automatic	Yes
Type of assembly	Impresso
Hole drilling	45/9.5 mm and 48/9 mm
Suitable for max. door thickness	22 mm
Opening angle	110 Degree
Suitable for side drill hole diameter	10 mm
Min. hinge pot distance	4 mm
Hinge pot depth	11.5 mm
Suitable for drill hole diameter, pot hole	35 mm
Min./max. hinge pot distance	4-7 mm
Max. hinge pot distance	7 mm
