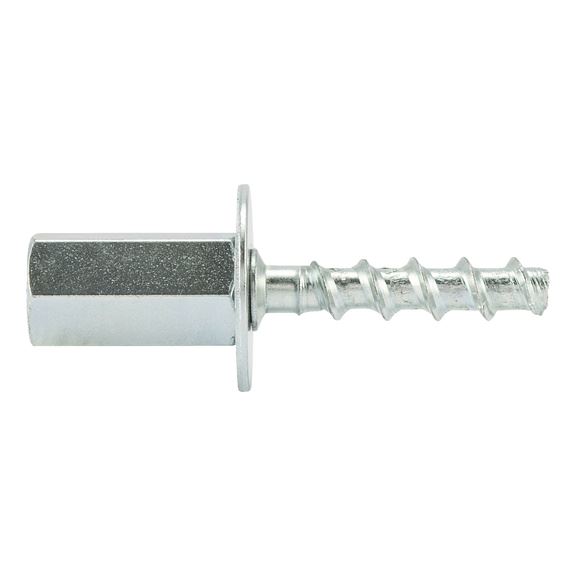

Concrete screw with female thread W-BS/S

Article No. 5929176001
Concrete screw W-BS type I, steel galvanised CONCSCR-(W-BS/I)-(A2K)-SW13-M8/M10-6X35
€1.17 inc. VAT price per 1 PCS
AVAILABLE
+ -
*
For suspensions and fittings with threaded rods (step thread M8/M10), zinc-plated steel

Extremely flexible to use

Three anchoring depths (size 6 - 14) and a large variety of types

  • High load-bearing capacities
  • Virtually no expansion effect, enabling minimal axis and edge distances to be maintained
  • Very quick and easy to install
  • No installation torque required
  • Immediate load-bearing capacity – no waiting
Notice

From size 8, we recommend the use of a suitable tangential impact screwdriver for installation.

If several anchors are arranged behind each other in the same load direction, only one anchor is positioned for transverse loads.

Proof of Performance

ETA-16/0043 for individual attachment

Option 1, cracked and non-cracked concrete

ETA-16/0128 for multiple attachment

Concrete

Hollow-core prestressed concrete ceilings

Fire resistance

R30, R60, R90, R120; Technical Report TR020 (included in the approvals)

For suspensions and fittings with threaded rods (step thread M8/M10), zinc-plated steel

Extremely flexible to use

Three anchoring depths (size 6 - 14) and a large variety of types

  • High load-bearing capacities
  • Virtually no expansion effect, enabling minimal axis and edge distances to be maintained
  • Very quick and easy to install
  • No installation torque required
  • Immediate load-bearing capacity – no waiting
Notice

From size 8, we recommend the use of a suitable tangential impact screwdriver for installation.

If several anchors are arranged behind each other in the same load direction, only one anchor is positioned for transverse loads.

Proof of Performance

ETA-16/0043 for individual attachment

Option 1, cracked and non-cracked concrete

ETA-16/0128 for multiple attachment

Concrete

Hollow-core prestressed concrete ceilings

Fire resistance

R30, R60, R90, R120; Technical Report TR020 (included in the approvals)

Products specifications
Anchor size 6 mm
Thread diameter 7.5 mm
Anchor length (l) 35 mm
Female thread 8/10 mm
Nominal drill-bit diameter (d 0) 6 mm
Drill hole depth (h 1.1) 40 mm
Embedding depth (h nom1) 35 mm
External drive WS13
Material Steel
Surface Zinc plated
