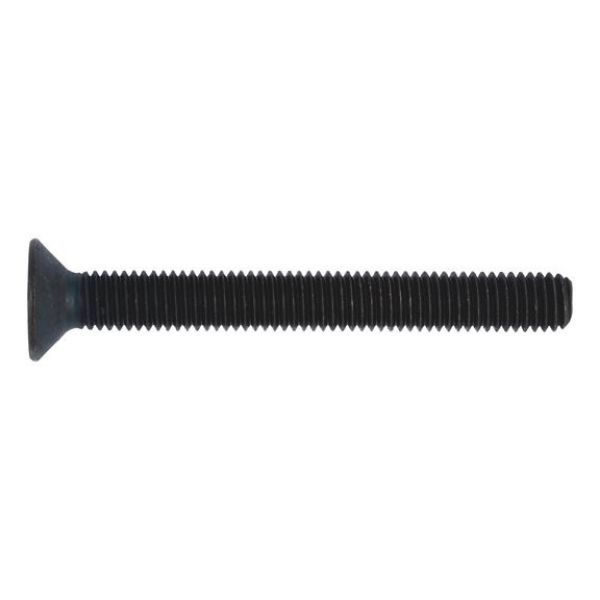

Countersunk screw with hexagon socket head

Article No. 008918120

DIN 7991/ISO 10642 plain steel 010.9 SCR-CS-DIN7991-010.9-IH12-M18X120

€2.38 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

ISO 10642, steel 010.9, plain

Notice

ISO 10642 replaces DIN 7991 | There is some limited similarity (some head heights and head diameters have been changed | nominal Ø M18, M22, M24 are omitted | Stainless steels removed | strength classes 10.9 and 12.9 added).

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Specification
Technical Information

ISO 10642, steel 010.9, plain

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Products specifications

Thread type x nominal diameter (d₁)	M18
Length (l₁)	120 mm
Head diameter (d_k)	33 mm
Head height (k₁)	8 mm
Internal drive (s₁)	IH12
Standards	DIN 7991
Material	Steel
Property class	010.9
Surface	Bare
RoHS-compliant	Yes
Head type	Countersunk head
Drive type	Hexagon socket
Thread type	Metric thread
Pitch	2.5 mm
Thread format	Standard metric thread
Product class	A
