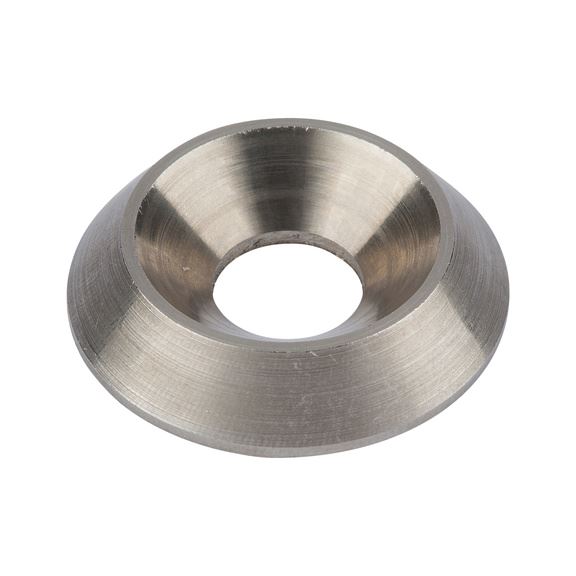

Countersunk washer/washer

Article No. 045754

Countersunk washer/washer stainless steel A1 WSH-CS-A1-D4,3

€19.47 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

A1 stainless steel

Specification
Application
Technical Information
Documents

A1 stainless steel

Application area

For aluminium window construction, sun room construction, façade construction, stair construction, tram construction, rail car construction and tram workshops

Suitable for countersunk screws

Products specifications

Internal diameter (d₁)	4.3 mm
Outer diameter (d₂)	14 mm
Outer diameter 2 (d3)	10 mm
Height (h₁)	2.8 mm
Washer thickness (t)	2.8 mm
Material	Stainless steel A1
Surface	Bare
RoHS-compliant	Yes
Suitable for	Countersunk screws
Area of application	Timber construction<br>Timber panel construction<br>Structural woodwork

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Datasheets(1)

CAD Data (available after login)

Products specifications

Internal diameter (d₁)	4.3 mm
Outer diameter (d₂)	14 mm
Outer diameter 2 (d3)	10 mm
Height (h₁)	2.8 mm
Washer thickness (t)	2.8 mm
Material	Stainless steel A1
Surface	Bare
RoHS-compliant	Yes
Suitable for	Countersunk screws
Area of application	Timber construction<br>Timber panel construction<br>Structural woodwork
