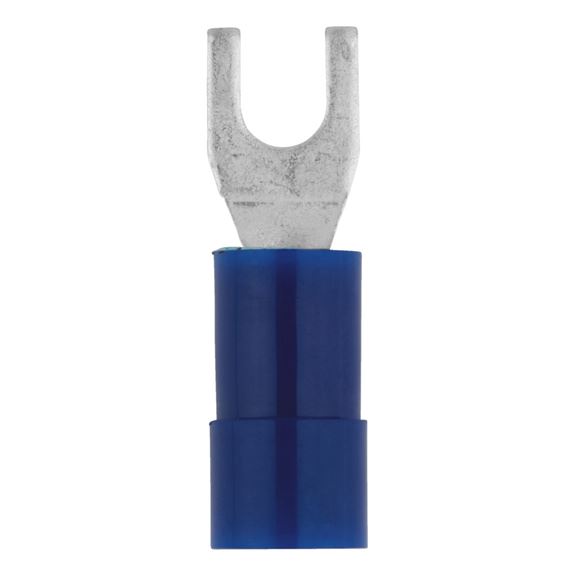

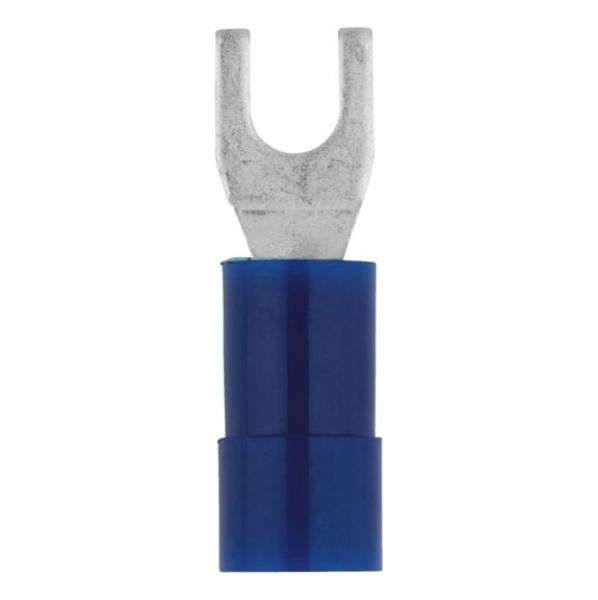

Crimp cable lug, fork shape

Article No. 0967401153

Crimp cable lug, insulated fork shape CRMPCBLLUG-FORK-46237-CU-(J2N)-M3-2,5SMM

€10.62 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Polyamide insulated

Expanded insulating sleeve

Harmonised conductors with stronger cable core insulation can be processed without a problem.

"Easy Entry" insertion

Easy, fast and safe insertion of the conductor.

High-quality polyamide

Suitable for use in situations involving changing loads and temperature fluctuations.

Notice

The fitter must check the inserted cable (by trying to pull it out if necessary).

Proof of Performance

UL
Fork shape in accordance with DIN 46237/C

Specification
Application
Technical Information

Polyamide insulated

Expanded insulating sleeve

Harmonised conductors with stronger cable core insulation can be processed without a problem.

"Easy Entry" insertion

Easy, fast and safe insertion of the conductor.

High-quality polyamide

Suitable for use in situations involving changing loads and temperature fluctuations.

Notice

The fitter must check the inserted cable (by trying to pull it out if necessary).

Proof of Performance

UL
Fork shape in accordance with DIN 46237/C

Application area

For fine and superfine stranded copper conductors

Products specifications

Min./max. wire cross section	1.5-2.5 mm²
Colour	Blue
Flange hole	M3
Max. nominal voltage	600 V/AC
Max. temperature conditions	105 °C
Material	Copper
Surface	Tin-plated
Insulating material	Nylon
Halogen-free	Yes
Silicone-free	Yes

Products specifications

Min./max. wire cross section	1.5-2.5 mm²
Colour	Blue
Flange hole	M3
Max. nominal voltage	600 V/AC
Max. temperature conditions	105 °C
Material	Copper
Surface	Tin-plated
Insulating material	Nylon
Halogen-free	Yes
Silicone-free	Yes
