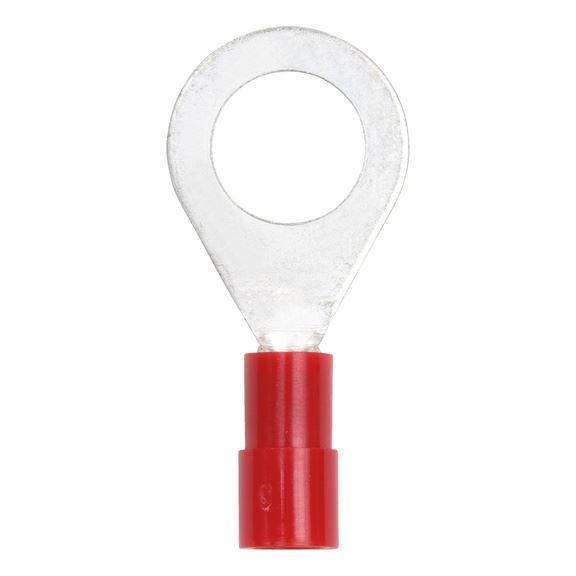

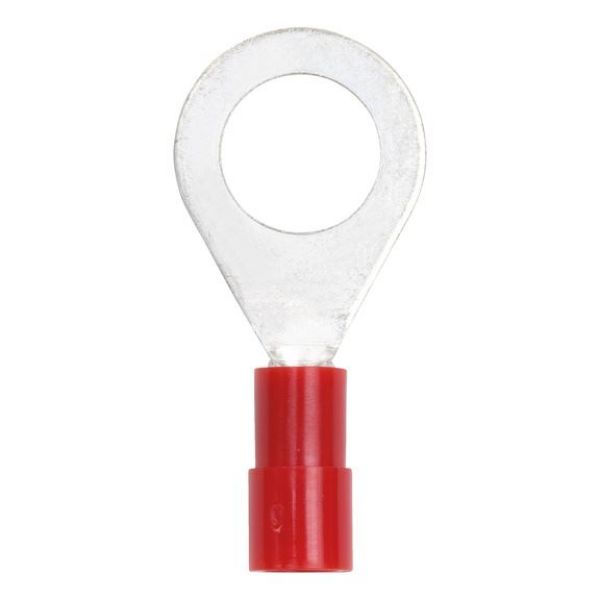

Crimp cable lug, ring shape - CRMPCBLLUG-RG-46237-CU-M8-1,0SMM

Crimp cable lug, ring shape

Article No. 0967400058

Crimp cable lug, insulated ring shape CRMPCBLLUG-RG-46237-CU-M8-1,0SMM

€13.57 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Polyamide insulated

Expanded insulating sleeve

Harmonised conductors with stronger cable core insulation can be processed without a problem.

"Easy Entry" insertion

Easy, fast and safe insertion of the conductor

High-quality polyamide

Suitable for use in situations involving changing loads and temperature fluctuations

Notice

The fitter must check the inserted cable (by trying to pull it out if necessary).

Proof of Performance

UL (0.5–6.0 mm²)
Ring shape according to DIN 46237

Specification
Application
Technical Information

Polyamide insulated

Expanded insulating sleeve

Harmonised conductors with stronger cable core insulation can be processed without a problem.

"Easy Entry" insertion

Easy, fast and safe insertion of the conductor

High-quality polyamide

Suitable for use in situations involving changing loads and temperature fluctuations

Notice

The fitter must check the inserted cable (by trying to pull it out if necessary).

Proof of Performance

UL (0.5–6.0 mm²)
Ring shape according to DIN 46237

Application area

For fine and superfine stranded copper conductors

Products specifications

Min./max. wire cross section	0.5-1 mm²
Colour	Red
Length	21.6 mm
Flange hole	M8
Max. nominal voltage	600 V
Max. temperature conditions	105 °C
Material	Copper
Surface	Tin-plated
Insulating material	Nylon
Halogen-free	No
Silicone-free	No

Products specifications

Min./max. wire cross section	0.5-1 mm²
Colour	Red
Length	21.6 mm
Flange hole	M8
Max. nominal voltage	600 V
Max. temperature conditions	105 °C
Material	Copper
Surface	Tin-plated
Insulating material	Nylon
Halogen-free	No
Silicone-free	No
