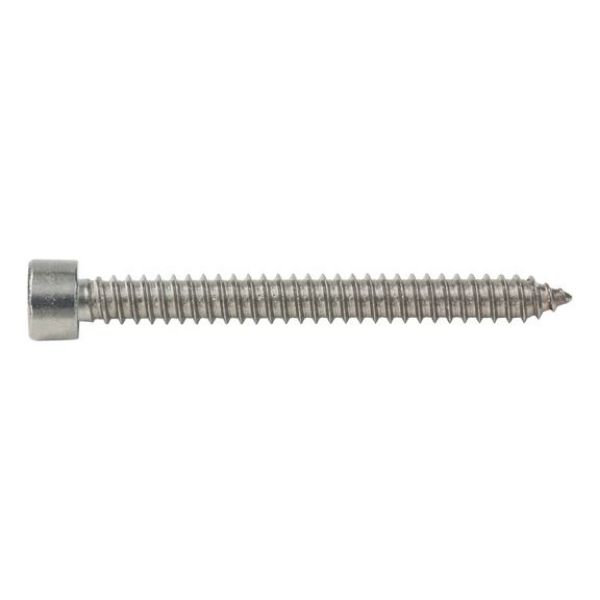

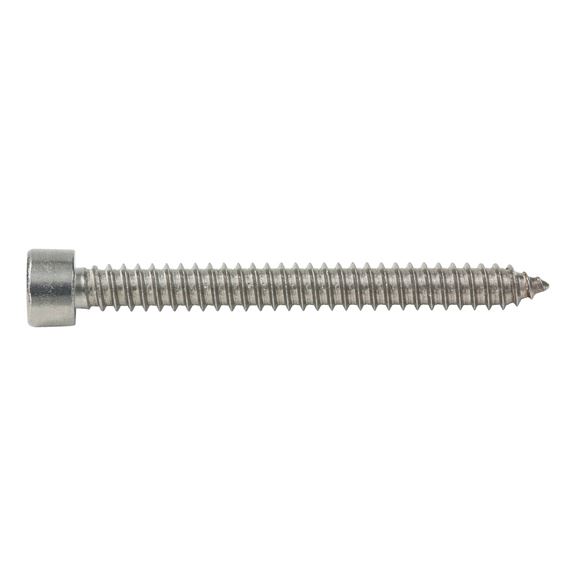

Cylinder tapping screw, C shape with hexagon socket

Article No. 012615525

WN 4762 stainless steel A2 internal hexagon C SCR-CYL-WN4762-C-IH5-A2/20H-5,5X25

€18.41 inc. VAT price per 100 PCS

Available on Order
Price may vary

Qty:

+ -

Head shape in accordance with ISO 4762 stainless steel A2 plain

Self-tapping screws are screws that form their own thread. These screws form their own counter thread when screwed into a prefabricated core hole
Reference values for selecting the correct core-hole diameter are included in DIN 7975

Head shape in accordance with ISO 4762 stainless steel A2 plain

Self-tapping screws are screws that form their own thread. These screws form their own counter thread when screwed into a prefabricated core hole
Reference values for selecting the correct core-hole diameter are included in DIN 7975

Products specifications

Material	Stainless steel A2
Surface	Bare
Form	C
Nominal diameter (d₁)	5.5 mm
Length (l₁)	25 mm
Head diameter (d_k)	10 mm
Head height (k₁)	6 mm
Internal drive	IH5
Thread type	Self-tapping screw thread
Head type	Socket head
Declaration of performance (EU-CPR)	No
