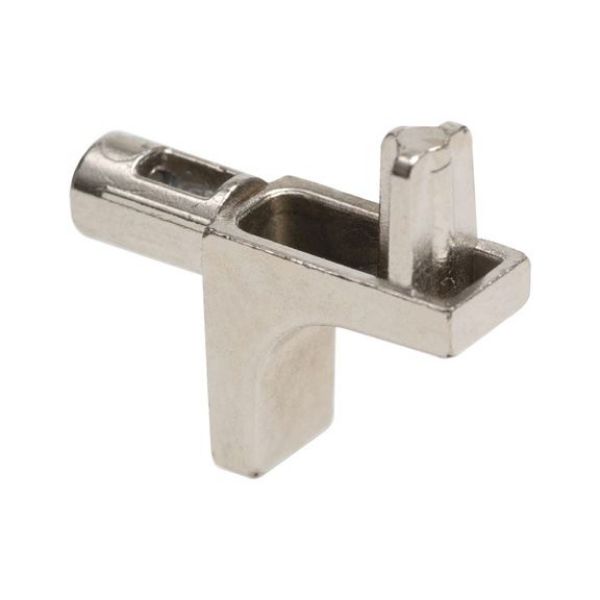

Designer shelf support with guide pin

Article No. 0683311131
Design shelf support with adapter SHLFSPRT-INSERT-DESIGN-PL-ZD-(NI)-PLUGD5
€0.09 inc. VAT price per 1 PCS
AVAILABLE
*
+ -

Material: die-cast zinc, nickel-plated

  • High break resistance
  • High-quality surface

Difference in height between centre of drill hole in cabinet side and the bottom edge of the shelf = 1.5 mm

Specified dimensions not binding. Subject to technical changes!

Material: die-cast zinc, nickel-plated

  • High break resistance
  • High-quality surface

Difference in height between centre of drill hole in cabinet side and the bottom edge of the shelf = 1.5 mm

Specified dimensions not binding. Subject to technical changes!

Products specifications
Material Zamak
Surface Nickel-plated
Drill diameter 5 mm
Min. drill hole depth 7.8 mm
Length (l) 20.8 mm
Width 6 mm
Height 18 mm
Stud diameter 1.65 mm
Length of pin 6 mm
Products specifications
Material Zamak
Surface Nickel-plated
Drill diameter 5 mm
Min. drill hole depth 7.8 mm
Length (l) 20.8 mm
Width 6 mm
Height 18 mm
Stud diameter 1.65 mm
Length of pin 6 mm
