Diamond cutting disc, speed, wet cutting for tiles

Article No. 5526870183

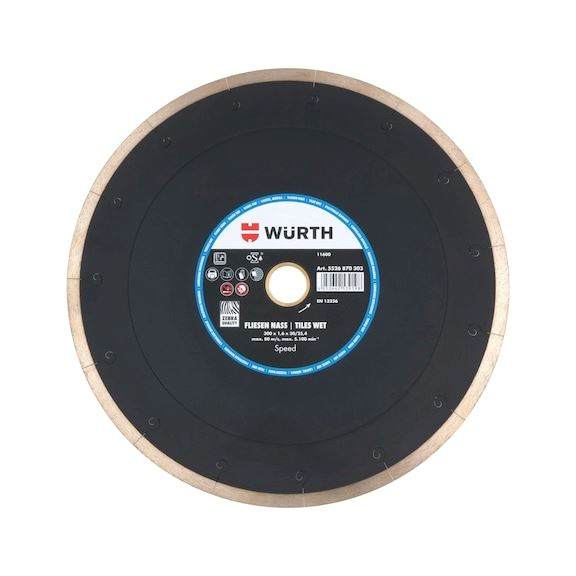

Diamond cutting disc Speed for wet cutting CUTDISC-DIA-SP-WET-TILES-BR30/25,4-D180 ZEBRA
€106.15 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
Premium diamond cutting disc with very narrow cutting surface and closed edge for a fast and clean cut. For material up to approx. 20 mm thick.

Extremely fine, precise cut

Thanks to segment mix of fine-grained diamonds in a special bond.

Improved cutting characteristics

Specially shaped expansion slits with room for expansion as well as minimal interruption to main blade.

Protects the bench saw motor

Less resistance in the material due to the extremely thin segment.

Reduced steering forces

The disc is also stabilised with systematic reinforcement around the flange.

Flexible use on machines with 25.4 and 30 mm mount

Reducing ring pressed in ex works can simply be removed if necessary to increase the location hole to 30 mm.

Premium diamond cutting disc with very narrow cutting surface and closed edge for a fast and clean cut. For material up to approx. 20 mm thick.

Extremely fine, precise cut

Thanks to segment mix of fine-grained diamonds in a special bond.

Improved cutting characteristics

Specially shaped expansion slits with room for expansion as well as minimal interruption to main blade.

Protects the bench saw motor

Less resistance in the material due to the extremely thin segment.

Reduced steering forces

The disc is also stabilised with systematic reinforcement around the flange.

Flexible use on machines with 25.4 and 30 mm mount

Reducing ring pressed in ex works can simply be removed if necessary to increase the location hole to 30 mm.

Application area

Specially designed for tiles, stoneware and comparable materials.


For use in wet cutting on stationary saws and table saws.

Products specifications
Versatility (points system) 3 of 4 points
Service life (points system) 3 of 4 points
Cutting speed (point system) 4 of 4 points
Cut quality (point system) 3 of 4 points
Diameter (Ø) 180 mm
Drill hole 30 mm
Reducing-ring internal diameter 25.4 mm
Segment height 9 mm
Segment thickness 1.4 mm
Segment connection Sintered
Max. rotation speed 8500 rpm
Max. circumferential speed 80 m/s

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications
Versatility (points system) 3 of 4 points
Service life (points system) 3 of 4 points
Cutting speed (point system) 4 of 4 points
Cut quality (point system) 3 of 4 points
Diameter (Ø) 180 mm
Drill hole 30 mm
Reducing-ring internal diameter 25.4 mm
Segment height 9 mm
Segment thickness 1.4 mm
Segment connection Sintered
Max. rotation speed 8500 rpm
Max. circumferential speed 80 m/s
