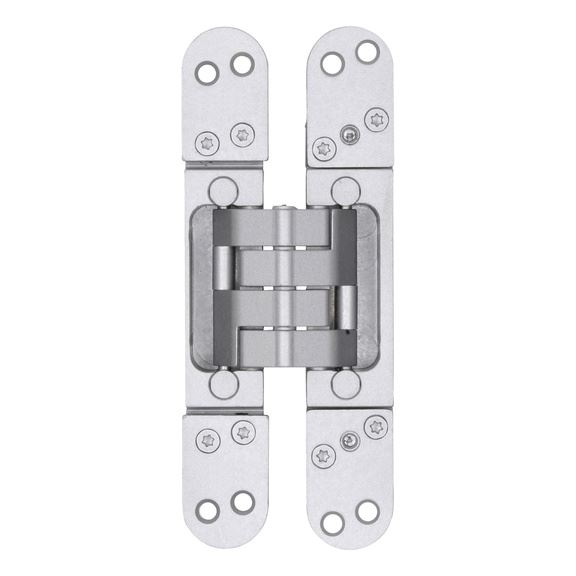

Door hinge VLB 60 3D

Article No. 0687380062
Door hinge VLB 60 3-D RECESHNGE-VLB60-3D-HINGE-(A2/MAT-OPTIC)
€88.74 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
Concealed door hinge for abutting doors

The hinges are recessed and are not visible when the door is closed

Can be adjusted in three directions without dismounting the door leaf

The toothed clamping plates reliably prevent independent and unwanted height adjustment

Maintenance-free!

Notice

To install the hinges, milling jigs, cutters ∅ 24 mm and a stop ring ∅ 30 mm are required.

If the hinges are installed on wooden wrap-around frames, separate mounting plates are required.

Specified dimensions not binding. Subject to technical changes!

Concealed door hinge for abutting doors

The hinges are recessed and are not visible when the door is closed

Can be adjusted in three directions without dismounting the door leaf

The toothed clamping plates reliably prevent independent and unwanted height adjustment

Maintenance-free!

Notice

To install the hinges, milling jigs, cutters ∅ 24 mm and a stop ring ∅ 30 mm are required.

If the hinges are installed on wooden wrap-around frames, separate mounting plates are required.

Specified dimensions not binding. Subject to technical changes!

Application area

The hinges can be used in DIN R and DIN L doors without alteration.



Suitable for abutting building doors on wooden block, wooden wrap-around, steel and aluminium frames.

Products specifications
Suitable for Flush wooden doors
Material of the housing ALU/ST
Surface Lacquered
Colour Stainless steel coloured<br>Chrome coloured
DIN direction DIN R/L
Lateral adjustment +/- 3 mm
Height adjustment +/- 3 mm
Contact pressure adjustment + 2&nbsp;mm/- 1&nbsp;mm
Integrated hinge side security No
Load capacity with 2 hinges 100 kg
Opening angle 180 Degree
EC declaration of conformity (CE) Yes
Products specifications
Suitable for Flush wooden doors
Material of the housing ALU/ST
Surface Lacquered
Colour Stainless steel coloured<br>Chrome coloured
DIN direction DIN R/L
Lateral adjustment +/- 3 mm
Height adjustment +/- 3 mm
Contact pressure adjustment + 2&nbsp;mm/- 1&nbsp;mm
Integrated hinge side security No
Load capacity with 2 hinges 100 kg
Opening angle 180 Degree
EC declaration of conformity (CE) Yes
