Double-end box wrench, extra long - DBRGSPN-METR-EXTRA-LONG-WS12X14

Double-end box wrench, extra long - DBRGSPN-METR-EXTRA-LONG-WS12X14

Double-end box wrench, extra long - DBRGSPN-METR-EXTRA-LONG-WS12X14

Double-end box wrench, extra long - DBRGSPN-METR-EXTRA-LONG-WS12X14

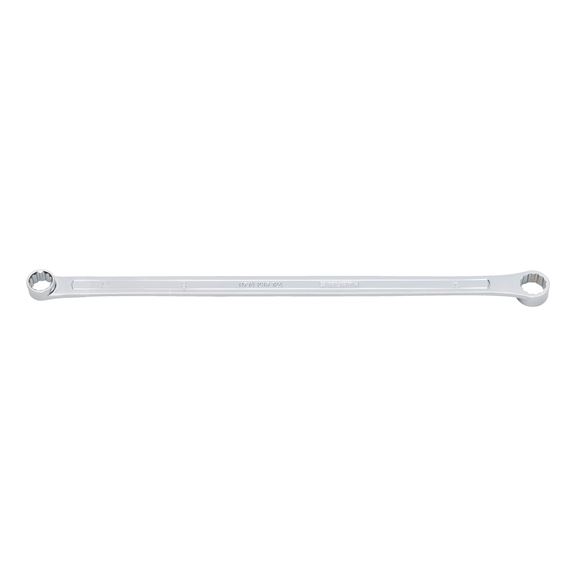

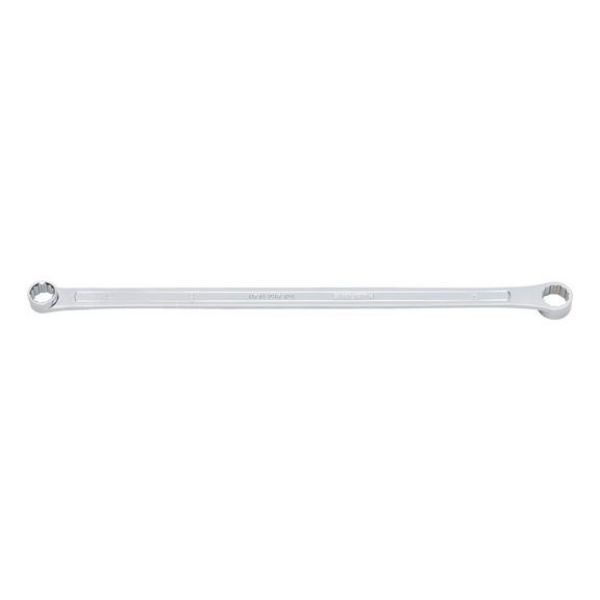

Double-end box wrench, extra long

Article No. 0714235124

Metric double-end box wrench, extra long DBRGSPN-METR-EXTRA-LONG-WS12X14

€32.67 inc. VAT price per 1 PCS

LOW STOCK

Packaging Unit *

Qty:

+ -

For high tightening and releasing forces.

Design: Metric
Drive: Ring side POWERDRIV, bihexagonal
Standard: Width across flats per DIN 475 Part II
Material: Chrome-vanadium steel
Surface: Chrome-plated basic body with a matt satin finish
Geometry: Straight, very slim ring design for hard-to-reach areas

Specification
Application
Technical Information
Documents

For high tightening and releasing forces.

Design: Metric
Drive: Ring side POWERDRIV, bihexagonal
Standard: Width across flats per DIN 475 Part II
Material: Chrome-vanadium steel
Surface: Chrome-plated basic body with a matt satin finish
Geometry: Straight, very slim ring design for hard-to-reach areas

Application area

Universal-joint shaft flange, axle joint, ball joint and supporting joint, axle-link screw joints.

Products specifications

Width across flats	10 x 11 mm<br>12 x 14 mm<br>13 x 17 mm<br>15 x 16 mm<br>19 x 22 mm
External diameter of ring (d1)	17.2 mm
External diameter of ring 2 (d2)	20 mm
Ring thickness (a1)	9.7 mm
Ring thickness 2 (a2)	10.8 mm
Shank thickness	4.5 mm
Length (l)	327 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Products specifications

Width across flats	10 x 11 mm<br>12 x 14 mm<br>13 x 17 mm<br>15 x 16 mm<br>19 x 22 mm
External diameter of ring (d1)	17.2 mm
External diameter of ring 2 (d2)	20 mm
Ring thickness (a1)	9.7 mm
Ring thickness 2 (a2)	10.8 mm
Shank thickness	4.5 mm
Length (l)	327 mm
