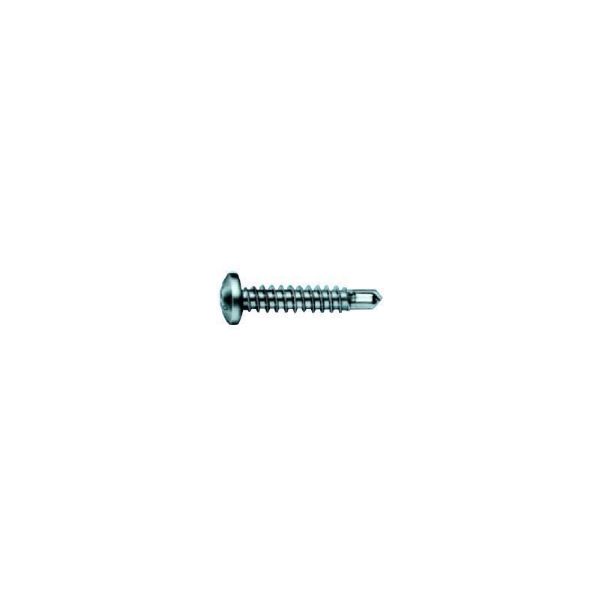

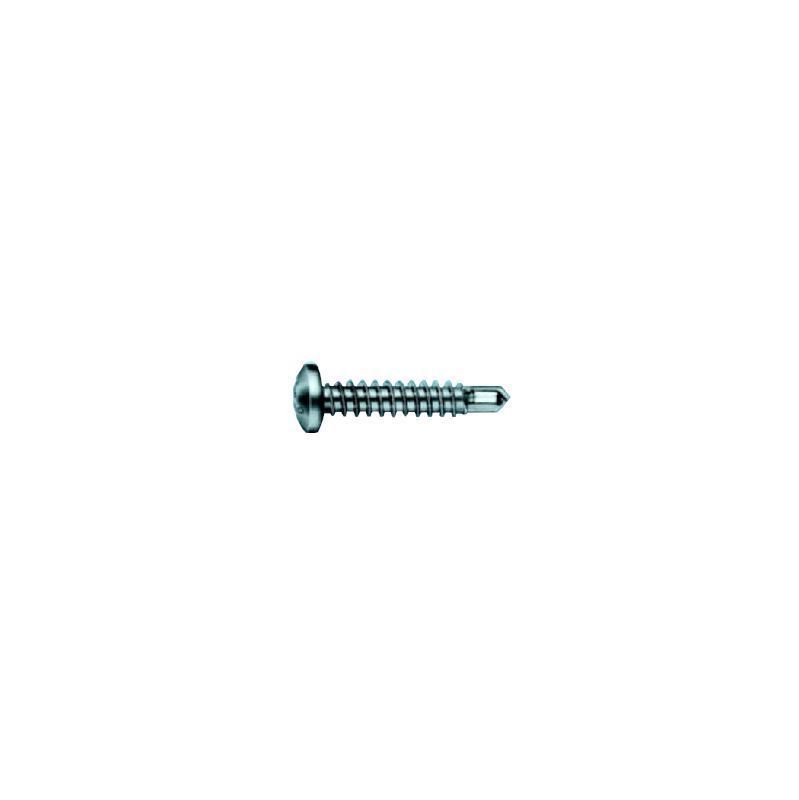

SELFDRILLING SCREW WITH PANHEAD

Article No. 504924850

Pias Galvanised steel, flat head, H SCR-DBIT-PANHD-H2-(A3K)-4,8X50

€11.80 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

Factory standard, galvanised steel, blue passivated (A3K), recessed head, H.

Factory standard, galvanised steel, blue passivated (A3K), recessed head, H.

Products specifications

Material	Steel
Surface	Galvanised
Nominal diameter (d₁)	4.8 mm
Length (l₁)	50 mm
Head diameter (d_k)	9.5 mm
Head height (k₁)	3.55 mm
Drill tip length (l_p)	4.5 mm
Other standard	WN 211
Head type	Flat head
Internal drive	H2
Thread type x spindle-thread diameter	Self-tapping screw thread
Max. material thickness	4 mm
RoHS-compliant	Yes
