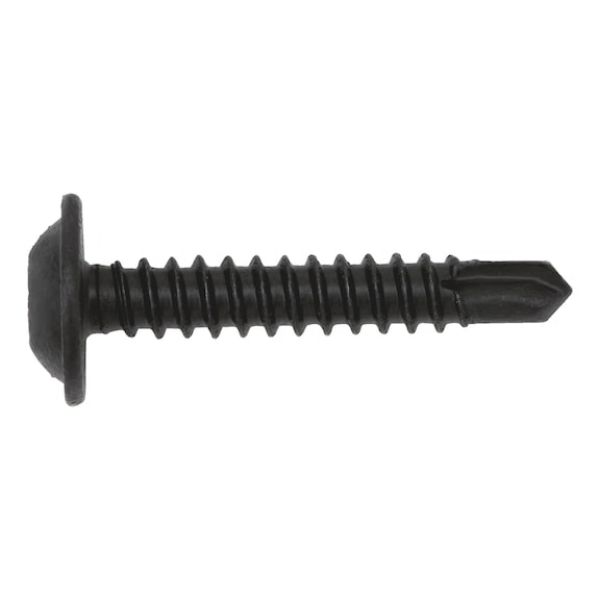

Drilling screw, pan head with collar and H cross recess pias®

Article No. 021824225
pias steel zinc flake ZFBH pan head flange H SCR-DBIT-PANHD-FLG-H2-(ZFBH)-4,2X25 ZEBRA PIAS
€0.09 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
Steel, black zinc-flake (ZFBH), H cross recess

Drilling, thread forming and screwing in one step, saving considerable time and effort

Exact drilling diameter for any screw connection

  • Resulting in minimisation of thread tolerance
  • Always an optimum connection

Prevents mistakes in the installation

Notice
  • The pressed-on flange generates a lower surface pressure, which helps to prevent stress cracks.
  • Contact pressure during use approx. 100 N/screw in with depth stop if necessary
  • Zinc-plated drilling screws must only be used where dampness is not to be expected.
  • For connection elements with a construction product approval, the approval, and in particular Part 2 "Special regulations", must always be observed.
Steel, black zinc-flake (ZFBH), H cross recess

Drilling, thread forming and screwing in one step, saving considerable time and effort

Exact drilling diameter for any screw connection

  • Resulting in minimisation of thread tolerance
  • Always an optimum connection

Prevents mistakes in the installation

Notice
  • The pressed-on flange generates a lower surface pressure, which helps to prevent stress cracks.
  • Contact pressure during use approx. 100 N/screw in with depth stop if necessary
  • Zinc-plated drilling screws must only be used where dampness is not to be expected.
  • For connection elements with a construction product approval, the approval, and in particular Part 2 "Special regulations", must always be observed.
Application area

The self-drilling screw for fastening plastic and thin sheet metal to metal sub-structures.

Products specifications
Material Steel
Surface Flake zinc black
Nominal diameter (d1) 4.2 mm
Length (l1) 25 mm
Head diameter (dk) 11 mm
Head height (k1) 2.6 mm
Drill tip length (lp) 3.7 mm
Other standard Company standard
Head type Pan head with collar
Internal drive H2
Thread type Self-tapping screw thread
Min. recommended substructure thickness 1.5 mm
Max. material thickness to be drilled through (metal) 3.5 mm
Max. attachment thickness (lB) 18 mm
Min./max. recommended installation speed (idling) 1700-2500 rpm
RoHS-compliant Yes
Products specifications
Material Steel
Surface Flake zinc black
Nominal diameter (d1) 4.2 mm
Length (l1) 25 mm
Head diameter (dk) 11 mm
Head height (k1) 2.6 mm
Drill tip length (lp) 3.7 mm
Other standard Company standard
Head type Pan head with collar
Internal drive H2
Thread type Self-tapping screw thread
Min. recommended substructure thickness 1.5 mm
Max. material thickness to be drilled through (metal) 3.5 mm
Max. attachment thickness (lB) 18 mm
Min./max. recommended installation speed (idling) 1700-2500 rpm
RoHS-compliant Yes
