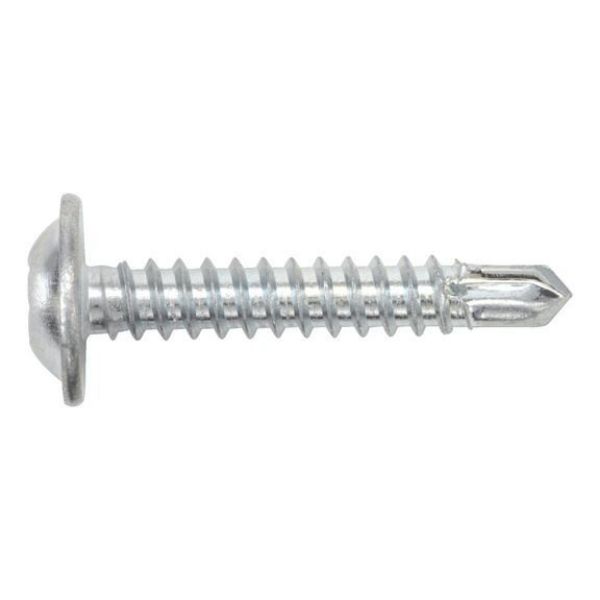

Pan head drilling screw with flange and AW drive pias<SUP>®</SUP> - SCR-DBIT-PANHD-FLG-AW20-(A3K)-4,2X25

Pan head drilling screw with flange PH2

Article No. 020734225

Steel galvanised pan head flange AW SCR-DBIT-PANHD-FLG-(A3K)-4,2X25-PH2

€4.13 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Features:

• Are ideal for steel-steel joints (e.g. Fasten sheets) with plate
thickness < 1.25 mm and steel-steel joints < 2 x 1.25 mm

• Selfdrilling screw with pan head with collar and PH drive

• Coating A2K

• Available in ORSY and INDUSTRY packaging

Specification
Technical Information
Documents

Features:

• Are ideal for steel-steel joints (e.g. Fasten sheets) with plate
thickness < 1.25 mm and steel-steel joints < 2 x 1.25 mm

• Selfdrilling screw with pan head with collar and PH drive

• Coating A2K

• Available in ORSY and INDUSTRY packaging

Products specifications

Material	Steel
Surface	Galvanised
Nominal diameter (d₁)	4.2 mm
Length (l₁)	25 mm
Head diameter (d_k)	11 mm
Head height (k₁)	2.9 mm
Drill tip length (l_p)	3.7 mm
Other standard	Company standard
Head type	Pan head
Internal drive	H2
Thread type	Self-tapping screw thread
For min. substructure thickness	1.5 mm
Max. material thickness to be drilled through (metal)	3.5 mm
Max. attachment thickness (l_B)	18 mm
Min./max. recommended installation speed (idling)	1700-2500 U/min(rpm)
RoHS-compliant	Yes

Products specifications

Material	Steel
Surface	Galvanised
Nominal diameter (d₁)	4.2 mm
Length (l₁)	25 mm
Head diameter (d_k)	11 mm
Head height (k₁)	2.9 mm
Drill tip length (l_p)	3.7 mm
Other standard	Company standard
Head type	Pan head
Internal drive	H2
Thread type	Self-tapping screw thread
For min. substructure thickness	1.5 mm
Max. material thickness to be drilled through (metal)	3.5 mm
Max. attachment thickness (l_B)	18 mm
Min./max. recommended installation speed (idling)	1700-2500 U/min(rpm)
RoHS-compliant	Yes
