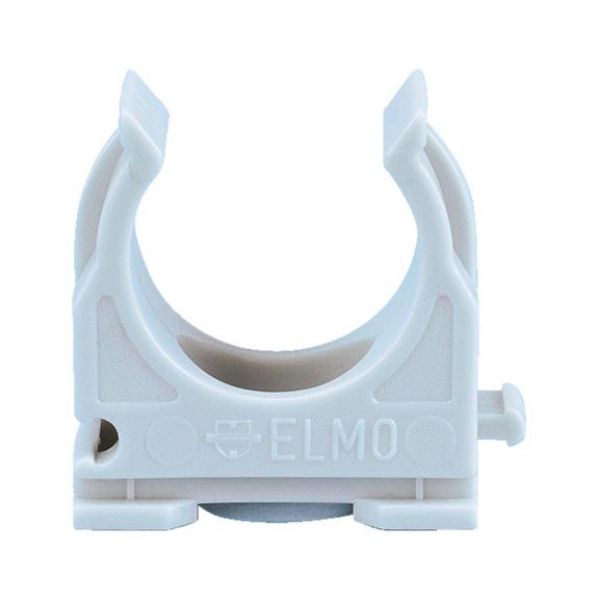

ELMO® clip

Article No. 0971555016

Clamp, metric CLIP-CLAMP-M-PLA-EN16 ELMO

€12.98 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

75° Easy-Entry insertion for simple mounting

Longitudinal hole for lateral alignment during assembly using chipboard screws or nail anchors
Centre marker for exact alignment of the clips
EN16-EN40: For inserting in profile rails with 11 mm slot width
Special side reinforcement for increased break resistance
Made in Germany

Notice

For nail anchor -∅ 5 mm, can be screwed on M6 stud bolts (e.g. support clip SCZ)

For nail anchor ∅ 6 mm

75° Easy-Entry insertion for simple mounting

Longitudinal hole for lateral alignment during assembly using chipboard screws or nail anchors
Centre marker for exact alignment of the clips
EN16-EN40: For inserting in profile rails with 11 mm slot width
Special side reinforcement for increased break resistance
Made in Germany

Notice

For nail anchor -∅ 5 mm, can be screwed on M6 stud bolts (e.g. support clip SCZ)

For nail anchor ∅ 6 mm

Application area

For surface laying of rigid plastic pipes W-IS-EL-F, WPKu-EM-F and WPKu-EM-F-H0

Products specifications

Nominal size	16
With connection mechanism (vertical)	Yes
Elongated hole length	9.4 mm
Elongated hole width	4.4 mm
Min./max. temperature resistance	-40 to 80 °C
Colour	Light grey, similar to RAL 7035
Material	PP - Polypropylene
Halogen-free	Yes
Silicone-free	Yes

Würth Catalogue(2)

Catalogue page as PDF 1

Products specifications

Nominal size	16
With connection mechanism (vertical)	Yes
Elongated hole length	9.4 mm
Elongated hole width	4.4 mm
Min./max. temperature resistance	-40 to 80 °C
Colour	Light grey, similar to RAL 7035
Material	PP - Polypropylene
Halogen-free	Yes
Silicone-free	Yes
