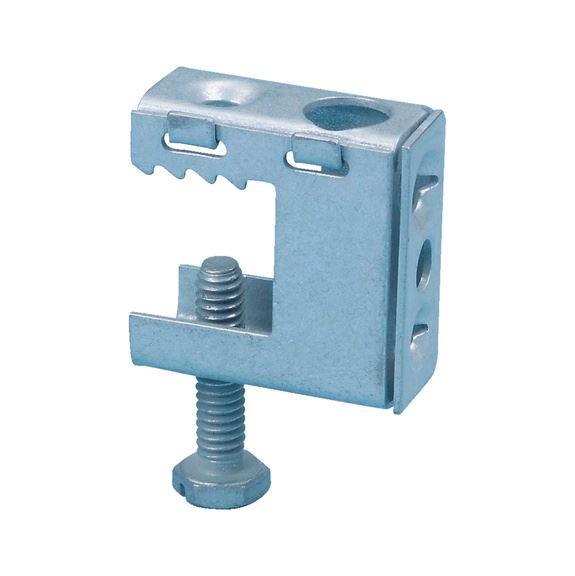

Flange beam Type LCW

Article No. 0971819101
Flanged beam type LCW SPRTCLIP-LCW-(ZNZ)-(2-18MM)
€1.94 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
For direct mounting of flat-leaf screws in the threaded holes, for example
  • Fastener used for suspension via threaded rods
  • Increased safety thanks to toothed clamp surface
For direct mounting of flat-leaf screws in the threaded holes, for example
  • Fastener used for suspension via threaded rods
  • Increased safety thanks to toothed clamp surface
Products specifications
Min./max. grip range 2-18 mm
Max. loading weight 45 kg
Clamp in depth (D) 17 mm
Through-hole diameter (ØA) 10.7 mm
Marginal-hole diameter (C) 6.3 mm
Material Steel
Surface Flake zinc

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications
Min./max. grip range 2-18 mm
Max. loading weight 45 kg
Clamp in depth (D) 17 mm
Through-hole diameter (ØA) 10.7 mm
Marginal-hole diameter (C) 6.3 mm
Material Steel
Surface Flake zinc
