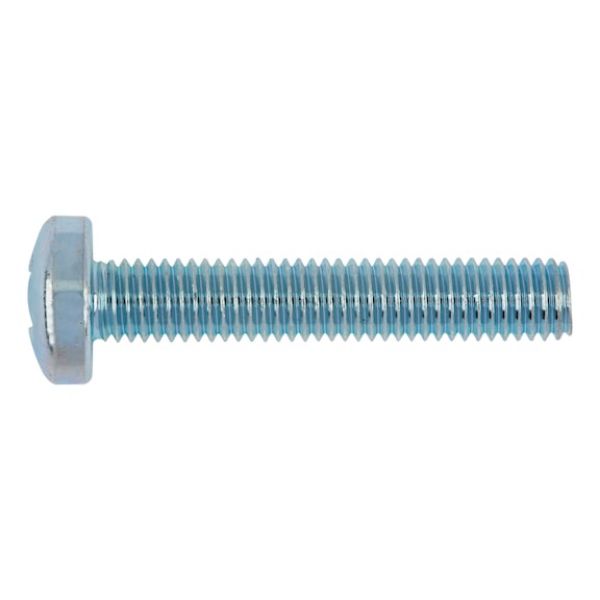

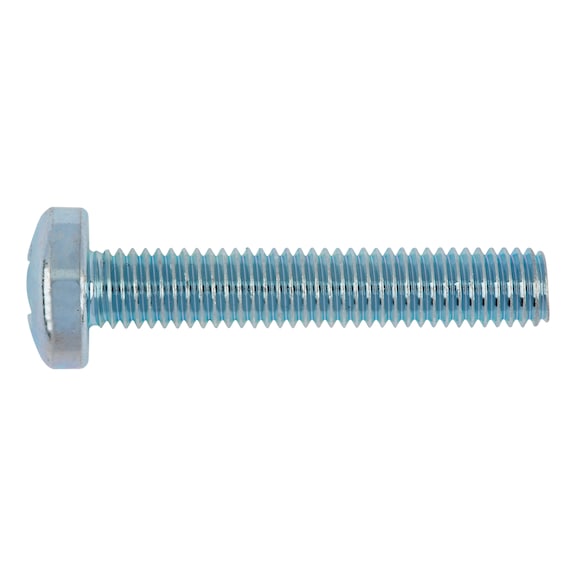

Flat-head screw with H cross recess ISO 7045, steel 4.8, zinc-plated, blue passivated (A2K) - SCR-PAN-ISO7045-4.8-H1-(A2K)-M3X10

Flat-head screw with H cross recess ISO 7045, steel 4.8, zinc-plated, blue passivated (A2K) - SCR-PAN-ISO7045-4.8-H1-(A2K)-M3X10

Flat-head screw with H cross recess ISO 7045, steel 4.8, zinc-plated, blue passivated (A2K) - SCR-PAN-ISO7045-4.8-H1-(A2K)-M3X10

Flat-head screw with H cross recess ISO 7045, steel 4.8, zinc-plated, blue passivated (A2K)

Article No. 5103003010

ISO 7045 steel 4.8 zinc plated H SCR-PAN-ISO7045-4.8-H1-(A2K)-M3X10

€0.04 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Notice

ISO 7045 replaces DIN 7985 | There is some similarity | some head heights and head diameters changed | thread lengths changed | penetration depths of recessed heads changed | standard title of raised countersunk head screw changed to flat head screw.

Specification
Technical Information
Documents

Notice

ISO 7045 replaces DIN 7985 | There is some similarity | some head heights and head diameters changed | thread lengths changed | penetration depths of recessed heads changed | standard title of raised countersunk head screw changed to flat head screw.

Products specifications

Thread type x nominal diameter (d₁)	M3
Länge (l₁)	10 mm
Diamètre de tête (d_k)	5.6 mm
Head height (k₁)	2.4 mm
Standards	ISO 7045
Werkstoff	Steel
Property class	4.8
Oberfläche	Zinc plated
Conforme à la norme RoHS	Yes
Head type	Pan head
Type d’entrainement	Crosshead
Empreinte intérieure	H1
Tipo filettatura	Metric thread
Pitch	0.5 mm
Thread form	Standard metric thread
Product class	A

Würth Catalogue (2)

Catalogue page as PDF 1

Products specifications

Thread type x nominal diameter (d₁)	M3
Länge (l₁)	10 mm
Diamètre de tête (d_k)	5.6 mm
Head height (k₁)	2.4 mm
Standards	ISO 7045
Werkstoff	Steel
Property class	4.8
Oberfläche	Zinc plated
Conforme à la norme RoHS	Yes
Head type	Pan head
Type d’entrainement	Crosshead
Empreinte intérieure	H1
Tipo filettatura	Metric thread
Pitch	0.5 mm
Thread form	Standard metric thread
Product class	A
