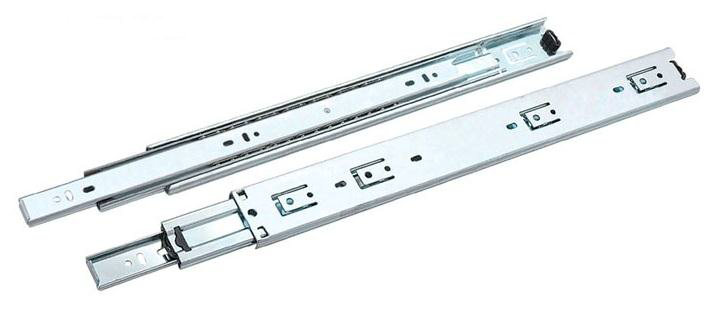

Drawer Slide 400mm

Article No. 684303400

Full extension guidance -BALL BEARING GUIDANCE-30kg

€10.57 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

• Full extension guidance

• Screw mounting

• Load capacity up to 30 kg / piece

• Height 45 mm

• Certificed for 50 000 cycles

• Coating: zinc plated

Specification
Technical Information
Documents

• Full extension guidance

• Screw mounting

• Load capacity up to 30 kg / piece

• Height 45 mm

• Certificed for 50 000 cycles

• Coating: zinc plated

Products specifications

Nominal length	400 mm
Extension travel (AW)	400 mm
Load capacity at 50,000 cycles	30 kg
Distance between mounting holes in cabinet rail (hole 1 to hole 2)	128 mm
Material	Steel
Coating	Zinc Plated

Products specifications

Nominal length	400 mm
Extension travel (AW)	400 mm
Load capacity at 50,000 cycles	30 kg
Distance between mounting holes in cabinet rail (hole 1 to hole 2)	128 mm
Material	Steel
Coating	Zinc Plated
