Full extension guidance -BALL BEARING GUIDANCE-30kg-Soft Close-684530301

Full extension guidance -BALL BEARING GUIDANCE-30kg-Soft Close-684530301

Full extension guidance -BALL BEARING GUIDANCE-30kg-Soft Close-684530301

Full extension guidance -BALL BEARING GUIDANCE-30kg-Soft Close-684530301

Full extension guidance -BALL BEARING GUIDANCE-30kg-Soft Close-684530301

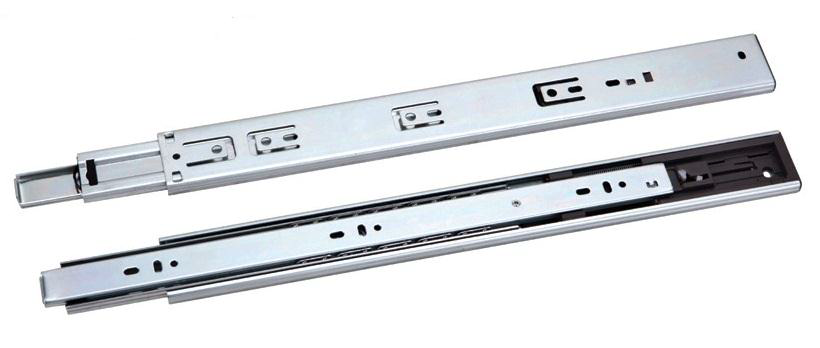

Drawer Slide 350mm Soft Close

Article No. 684530301

Full extension guidance -BALL BEARING GUIDANCE-30kg-Soft Close

€13.29 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

• Full extension guidance

• Soft close

• Screw mounting

• Load capacity up to 30 kg / piece

• Height 45 mm

• Certificed for 50 000 cycles

• Coating: zinc plated

Specification
Technical Information
Documents

• Full extension guidance

• Soft close

• Screw mounting

• Load capacity up to 30 kg / piece

• Height 45 mm

• Certificed for 50 000 cycles

• Coating: zinc plated

Products specifications

Nominal length	356 mm
Extension travel (AW)	350 mm
Load capacity at 50,000 cycles	30 kg
Distance between mounting holes in cabinet rail (hole 1 to hole 2)	64 mm
Material	Steel
Coating	Zinc Plated

Products specifications

Nominal length	356 mm
Extension travel (AW)	350 mm
Load capacity at 50,000 cycles	30 kg
Distance between mounting holes in cabinet rail (hole 1 to hole 2)	64 mm
Material	Steel
Coating	Zinc Plated
