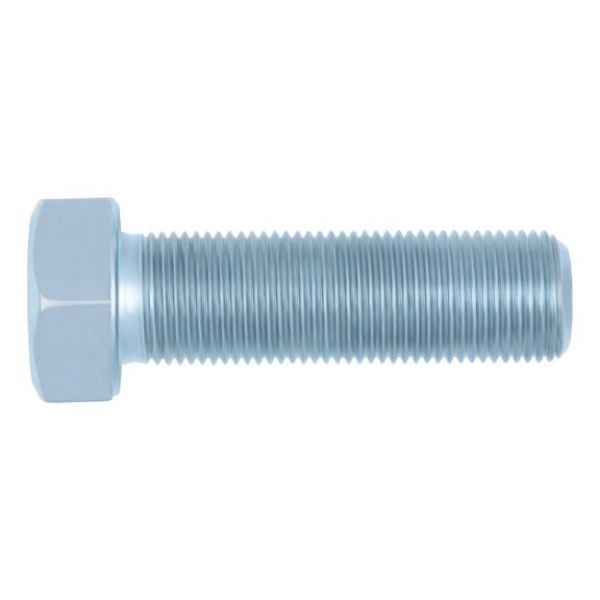

Fully threaded hexagonal bolt and fine thread

Article No. 006741030

DIN 961 steel 10.9 galvanised fine thread SCR-DIN961-10.9-WS17-(A2K)-M10X1,25X30

€0.59 inc. VAT price per 1 PCS

LOW STOCK

Packaging Unit *

Qty:

+ -

DIN 961, steel 10.9, galvanised, blue passivated (A2K)

The fine thread means

Lower rise for increased self-locking power compared to a bolt with a standard thread
Higher torque
Larger bolt diameter for increased reliability

Notice

DIN 961 has been withdrawn and replaced by ISO 8676. There is some similarity (Nominal size extended | Widths across flats for M10, M12, M14 and M22 changed).

Specification
Technical Information

DIN 961, steel 10.9, galvanised, blue passivated (A2K)

The fine thread means

Lower rise for increased self-locking power compared to a bolt with a standard thread
Higher torque
Larger bolt diameter for increased reliability

Notice

DIN 961 has been withdrawn and replaced by ISO 8676. There is some similarity (Nominal size extended | Widths across flats for M10, M12, M14 and M22 changed).

Products specifications

Thread type x nominal diameter x pitch (d₁)	M10 x 1.25
Length (l₁)	30 mm
Head height (k₁)	6.4 mm
Standards	DIN 961
Material	Steel
Property class	10.9
Surface	Galvanised
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
External drive (s₁)	WS17
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Fine pitch thread
Thread design	Full thread
Product class	A

Products specifications

Thread type x nominal diameter x pitch (d₁)	M10 x 1.25
Length (l₁)	30 mm
Head height (k₁)	6.4 mm
Standards	DIN 961
Material	Steel
Property class	10.9
Surface	Galvanised
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
External drive (s₁)	WS17
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Fine pitch thread
Thread design	Full thread
Product class	A
