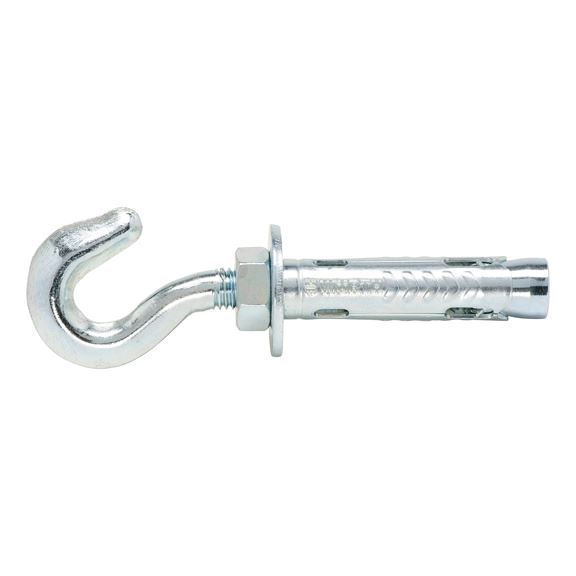

Heavy-duty anchor W-TM, type H

Article No. 0904901870

Heavy-duty anchor W-TM, type H, zinc-plated steel ANC-(W-TM/S-H)-(A2K)-M6X45

€1.30 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

With hooks, for non-cracked concrete

Minimal effort required to insert anchor
Immediate load-bearing capacity — no waiting
No setting tools required
Can be set flush with surface
Triple expansion sleeve to ensure even expansion and load distribution
Applying the specified torque during the anchoring process ensures secure installation
Load-controlled/torque-controlled expanding galvanised steel anchor in sizes M6–M12
Cotter-pin installation

Specification
Application
Technical Information
Documents

With hooks, for non-cracked concrete

Minimal effort required to insert anchor
Immediate load-bearing capacity — no waiting
No setting tools required
Can be set flush with surface
Triple expansion sleeve to ensure even expansion and load distribution
Applying the specified torque during the anchoring process ensures secure installation
Load-controlled/torque-controlled expanding galvanised steel anchor in sizes M6–M12
Cotter-pin installation

Application area

Can be used for medium to heavy loads

Suitable for attaching: Transfer lines on the ground requiring installation flush with the surface; steel structures, metal profiles, brackets, base plates, cable conduits, piping, mounting rails etc.

< C20/25, hard natural stone and solid brick masonry (unapproved)

The anchor may be used for anchorages with predominantly static loads or quasi-static loads

Individual attachment: Anchorage in non-cracked concrete

May only be used in dry indoor room conditions

Products specifications

Anchor diameter	6 mm
Anchor length (l)	45 mm
Nominal drill-bit diameter (d 0)	10 mm
Drill hole depth (h 1)	55 mm
Effective anchoring depth (h ef)	39.5 mm
Through-hole in the component to be connected (d f)	7 mm
Torque during anchoring (T inst)	5 Nm
Material	Steel
Surface	Galvanised
