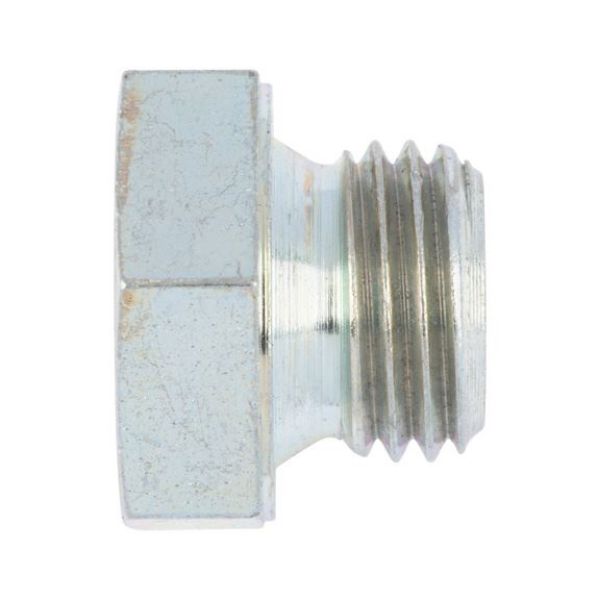

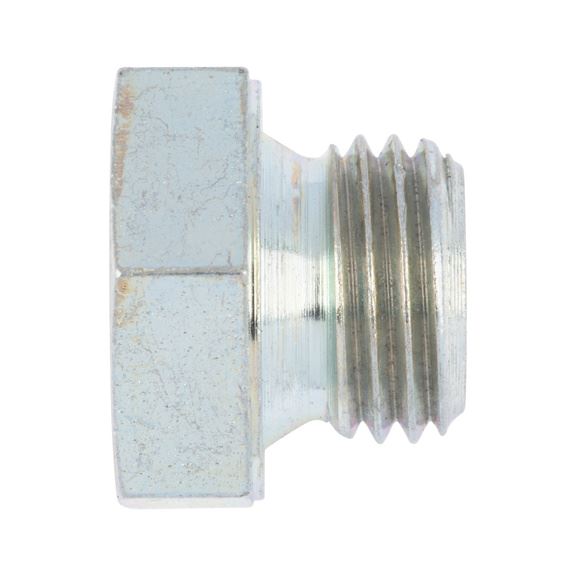

Hexagon head sealing plug, short screw-in pin

Article No. 02401215

DIN 7604 galvanised steel, shape A PLG-SEAL-DIN7604-A-(A2K)-M12X1,5

€0.72 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

DIN 7604, galvanised steel, blue passivated (A2K)

DIN 7604, galvanised steel, blue passivated (A2K)

Products specifications

Thread type x nominal diameter x pitch (d₁)	M12 x 1.5
Length (l₁)	15.5 mm
Head diameter (d_c)	17 mm
Head height (k₁)	6 mm
Standards	DIN 7604
Material	Steel
Surface	Galvanised
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
External drive (s₁)	WS17
Thread type	Metric thread
Pitch	1.5 mm
Thread format	Fine pitch thread
Thread length (metric thread)	19 mm
Version	With short screw in cone
Product class	B
