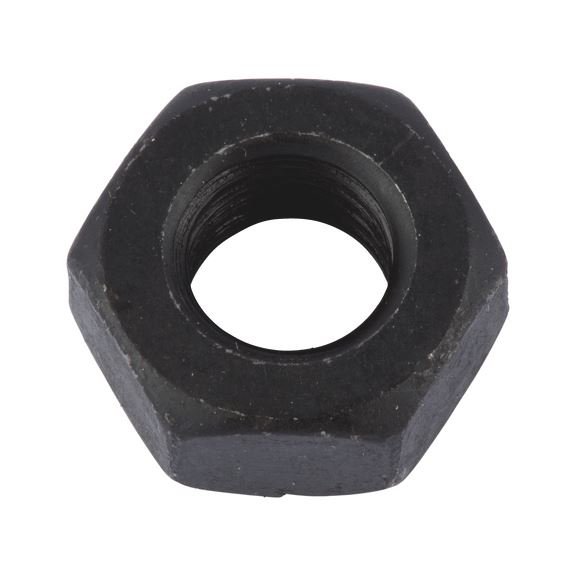

Hexagon nut

Article No. 03208

DIN 934 bare steel I10I NUT-HEX-DIN934-I10I-WS13-M8

€4.54 inc. VAT price per 100 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

DIN 934, steel I10I, plain

Notice

Hexagonal nuts complying with the DIN 934 standard cannot support test loads as per DIN EN ISO 898-2.

The strength class designation has two vertical bars added before and after the strength code to differentiate.

DIN 934 has been withdrawn and replaced by ISO 4032/8673. There is no similarity (Nominal diameter changed | Some nut heights changed | Width across flats changed for M10, M12, M14, M22 | ISO 4032 for standard thread | ISO 8673 for fine thread).

Specification
Technical Information

DIN 934, steel I10I, plain

Notice

Hexagonal nuts complying with the DIN 934 standard cannot support test loads as per DIN EN ISO 898-2.

The strength class designation has two vertical bars added before and after the strength code to differentiate.

Products specifications

Thread type x nominal diameter (D)	M8
Height (m₁)	6.5 mm
External drive (s₁)	WS13
Standards	DIN 934
Material	Steel
Property class	I10I
Surface	Bare
RoHS-compliant	Yes

Products specifications

Thread type x nominal diameter (D)	M8
Height (m₁)	6.5 mm
External drive (s₁)	WS13
Standards	DIN 934
Material	Steel
Property class	I10I
Surface	Bare
RoHS-compliant	Yes
