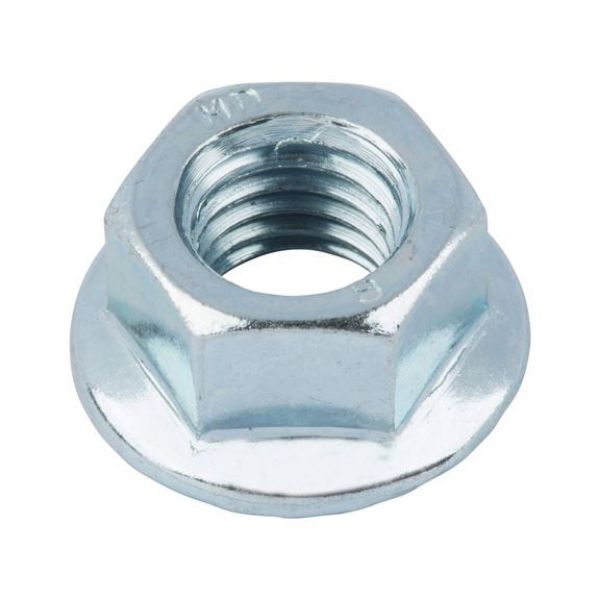

Hexagon nut with flange

Article No. 0379000012

DIN 6923 galvanized steel 8 NUT-HEX-FLG-DIN6923-8-WS18-(A2K)-M12

€16.52 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 6923, steel 8, galvanised, blue passivated (A2K)

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (Fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

Specification
Technical Information
Documents

DIN 6923, steel 8, galvanised, blue passivated (A2K)

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (Fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

Products specifications

Thread type x nominal diameter (D)	M12
Height (h₁)	12 mm
Flange diameter (d_c)	26 mm
External drive (s₁)	WS18
Standards	DIN 6923
Material	Steel
Property class	8
Surface	Galvanised
RoHS-compliant	Yes
DIN	6923

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (D)	M12
Height (h₁)	12 mm
Flange diameter (d_c)	26 mm
External drive (s₁)	WS18
Standards	DIN 6923
Material	Steel
Property class	8
Surface	Galvanised
RoHS-compliant	Yes
DIN	6923
