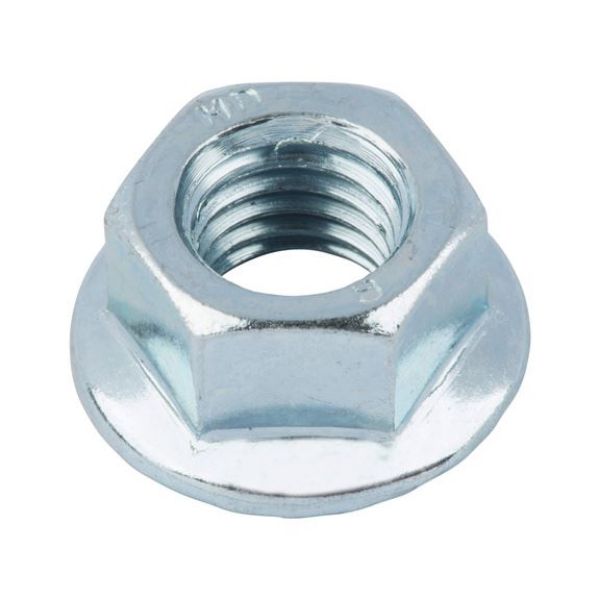

Hexagonal nut with flange

Article No. 039405

DIN 6923 zinc-plated steel 8 locking teeth NUT-SER-SIDIN6923-8-WS8-(A2K)-M5

€5.31 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 6923, steel 8, zinc-plated, blue passivated (A2K), with locking teeth

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (Fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

Specification
Technical Information
Documents

DIN 6923, steel 8, zinc-plated, blue passivated (A2K), with locking teeth

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (Fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

Products specifications

Thread type x nominal diameter (D)	M5
Height (h₁)	5 mm
Flange diameter (d_c)	11.8 mm
External drive (s₁)	WS8
Material	Steel
Property class	8
Surface	Galvanised
Head details	Ratchet
DIN	Similar to 6923
Thread type	Metric thread
Pitch	0.800 mm
Width across corners (e)	8.79 mm
Nominal diameter	5 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (D)	M5
Height (h₁)	5 mm
Flange diameter (d_c)	11.8 mm
External drive (s₁)	WS8
Material	Steel
Property class	8
Surface	Galvanised
Head details	Ratchet
DIN	Similar to 6923
Thread type	Metric thread
Pitch	0.800 mm
Width across corners (e)	8.79 mm
Nominal diameter	5 mm
