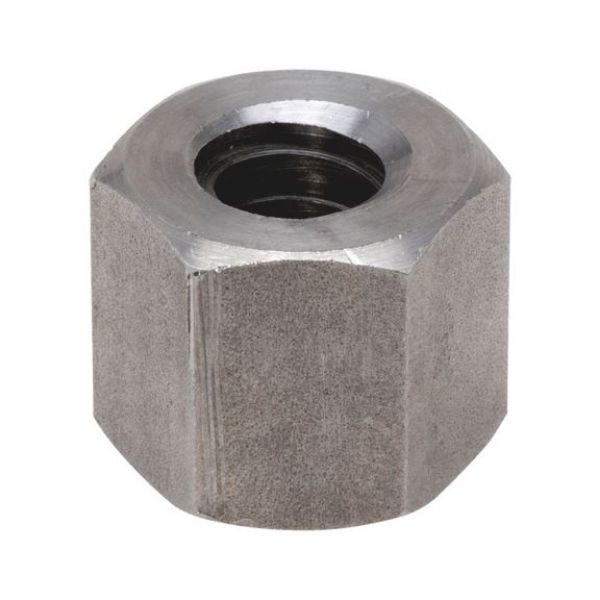

Hexagon nut with trapezoidal thread

Article No. 0369981306

DIN 103 plain steel 5 NUT-HEX-WN6330/1-DIN103-7H-5-WS46-TR30X6

€18.64 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Hexagon nut complying with WN 6330-1 with trapezoidal thread in accordance with DIN 103

Thread tolerance 7H in accordance with DIN 103
Bare steel

Specification
Application
Technical Information
Documents

Hexagon nut complying with WN 6330-1 with trapezoidal thread in accordance with DIN 103

Thread tolerance 7H in accordance with DIN 103
Bare steel

Application area

Trapezoidal threads are used to transfer forces and movements (feeding, adjusting, transporting and lifting movements). They convert rotary movements into linear movements.

Products specifications

Thread type x nominal diameter x pitch (D)	TR30 x 6.0
Height (h₁)	45 mm
External drive (s₁)	WS46
Material	Steel
Property class	5
Surface	Bare
Thread type	Metric trapezoidal screw thread

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter x pitch (D)	TR30 x 6.0
Height (h₁)	45 mm
External drive (s₁)	WS46
Material	Steel
Property class	5
Surface	Bare
Thread type	Metric trapezoidal screw thread
