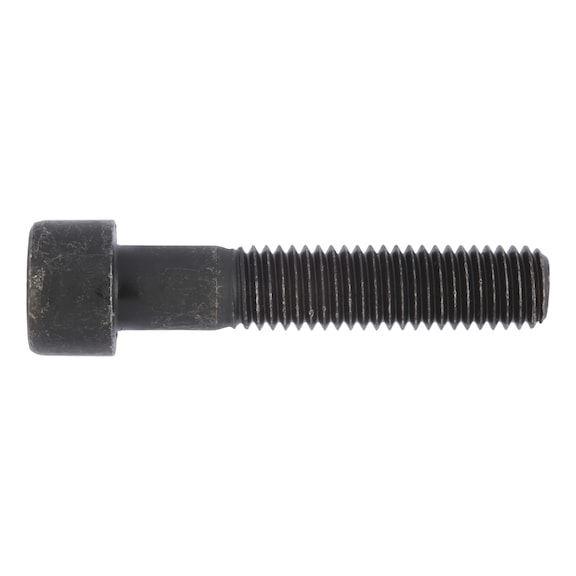

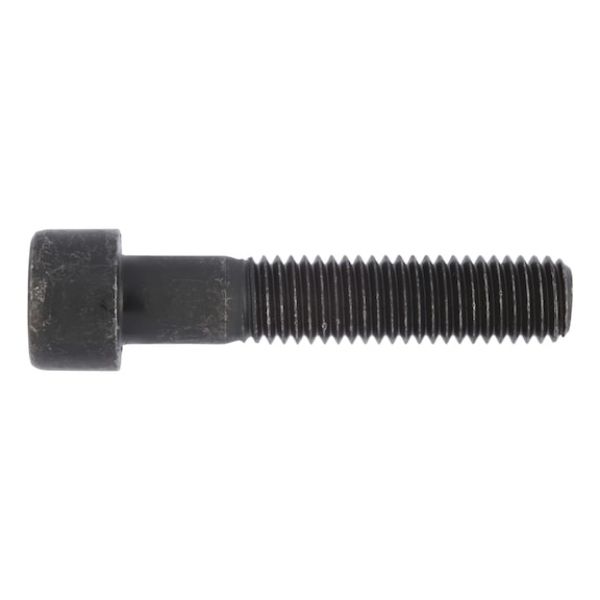

Hexagon Socket Head Cap Screw ISO 4762/DIN 912, steel 12.9, plain

Article No. 0083618

ISO 4762/DIN 912 steel 12.9 plain SCR-CYL-ISO4762-12.9-HS5-M6X18

€0.12 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	18 mm
Head diameter (d_k)	10 mm
Head height (k₁)	6 mm
Standards	ISO 4762
Material	Steel
Property class	12.9
Surface	Plain
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	HS5
Thread type	Metric thread
Thread form	Standard metric thread
Product class	A

Würth Catalogue (2)

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	18 mm
Head diameter (d_k)	10 mm
Head height (k₁)	6 mm
Standards	ISO 4762
Material	Steel
Property class	12.9
Surface	Plain
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	HS5
Thread type	Metric thread
Thread form	Standard metric thread
Product class	A
