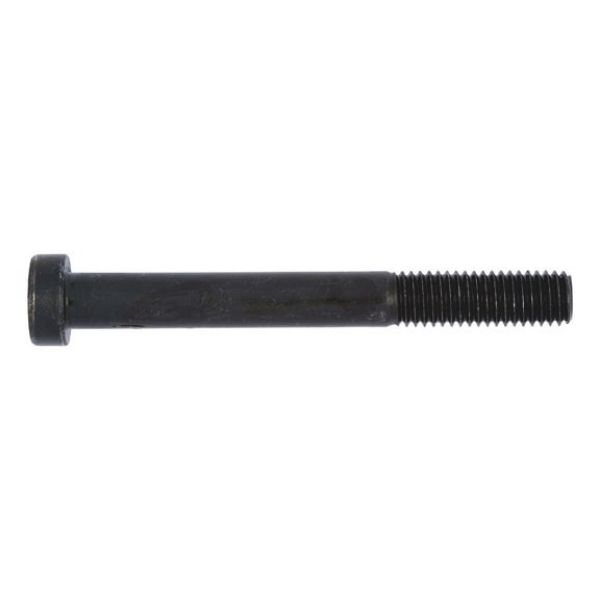

Hexagon Socket Head Cap Screw with low Head

Article No. 008571035

DIN 7984 plain steel 010.9 SCR-CYL-DIN7984-010.9-IH7-M10X35

€0.33 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

DIN 7984, steel 010.9, plain

Notice

Due to their head geometry, these screws can only be subjected to limited loads, see DIN EN ISO 898-1

DIN 7984, steel 010.9, plain

Notice

Due to their head geometry, these screws can only be subjected to limited loads, see DIN EN ISO 898-1

Products specifications

Thread type x nominal diameter (d₁)	M10
Length (l₁)	35 mm
Head diameter (d_k)	16 mm
Head height (k₁)	6 mm
Standards	DIN 7984
Material	Steel
Property class	010.9
Surface	Bare
RoHS-compliant	Yes
Head type	Socket low head
Drive type	Hexagon socket
Internal drive (s₁)	IH7
Thread type	Metric thread
Pitch	1.5 mm
Thread format	Standard metric thread
Thread length (metric thread) (l₂)	26 mm
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3 | 4

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M10
Length (l₁)	35 mm
Head diameter (d_k)	16 mm
Head height (k₁)	6 mm
Standards	DIN 7984
Material	Steel
Property class	010.9
Surface	Bare
RoHS-compliant	Yes
Head type	Socket low head
Drive type	Hexagon socket
Internal drive (s₁)	IH7
Thread type	Metric thread
Pitch	1.5 mm
Thread format	Standard metric thread
Thread length (metric thread) (l₂)	26 mm
Product class	A
