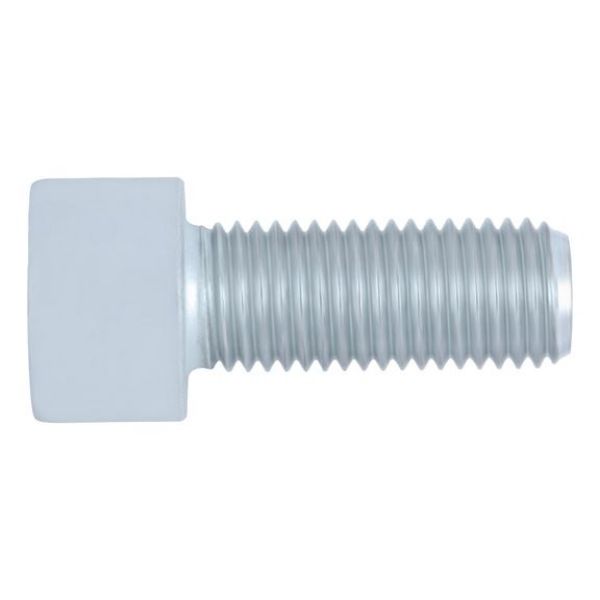

Hexagon Socket Head Cap Screw with metric fine pitch thread

Article No. 010810525

ISO 12474 / DIN 912 steel 10.9 galvanised fine thr SCR-ISO12474-10.9-IH8-(A2K)-M10X1,25X25

€0.93 inc. VAT price per 1 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

ISO 12474/DIN 912, steel 10.9, galvanised, blue coated (A2K)

Notice

DIN 912 has been withdrawn and replaced by ISO 4762 and ISO 12474. There is some similarity (nominal range changed | standard thread defined in ISO 4762, fine thread moved to ISO 12474).

Specification
Technical Information

ISO 12474/DIN 912, steel 10.9, galvanised, blue coated (A2K)

Notice

DIN 912 has been withdrawn and replaced by ISO 4762 and ISO 12474. There is some similarity (nominal range changed | standard thread defined in ISO 4762, fine thread moved to ISO 12474).

Products specifications

Thread type x nominal diameter x pitch (d₁)	M10 x 1.25
Length (l₁)	25 mm
Head diameter (d_k)	16 mm
Head height (k₁)	10 mm
Standards	ISO 12474
Material	Steel
Property class	10.9
Surface	Galvanised
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	IH8
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Fine pitch thread
Product class	A
