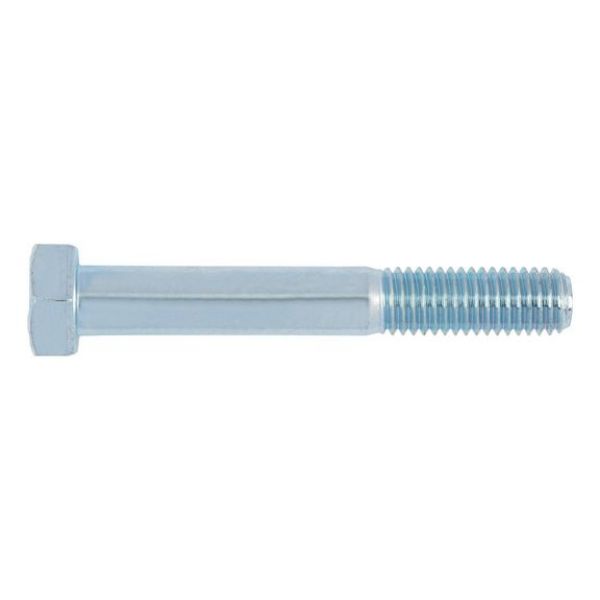

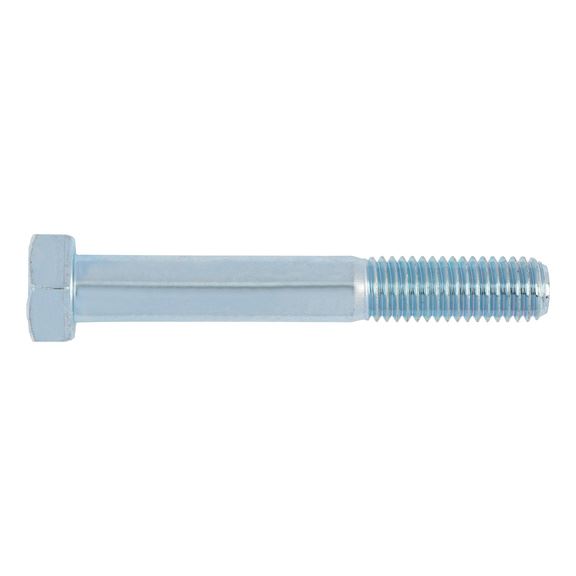

Hexagonal bolt with shank

Article No. 005327140

ISO 4014 steel 8.8 galvanised SCR-HEX-ISO4014-8.8-WS41-(A2K)-M27X140

€7.67 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

ISO 4014, steel 8.8, galvanised, blue passivated (A2K)

Notice

ISO 4014 replaces DIN 931 | There is some similarity | Nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22.

ISO 4014, steel 8.8, galvanised, blue passivated (A2K)

Notice

ISO 4014 replaces DIN 931 | There is some similarity | Nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22.

Products specifications

Thread type x nominal diameter (d₁)	M27
Length (l₁)	140 mm
Head height (k₁)	17 mm
External drive (s₁)	WS41
Standards	ISO 4014
Material	Steel
Property class	8.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Partial thread
Product class	B
