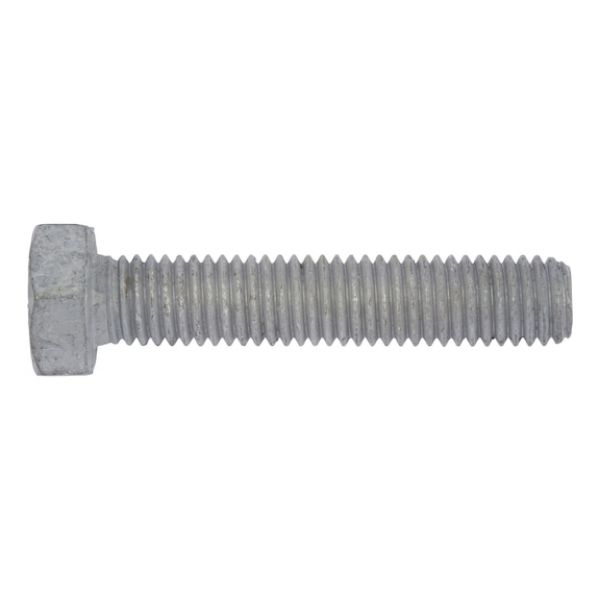

Hexagonal bolt with thread up to head

Article No. 41531660

ISO 4017 steel 8.8U hot dip galvanized SCR-HEX-ISO4017-8.8U-(HDG)-WS24-M16X60

€1.44 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

ISO 4017, steel 8.8U, hot-dip zinc-plated (TZN)

Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
The bolts are ISO-compliant after hot-dip zinc-plating.
The bolts must not be used with nuts that have an oversized thread. This can create problems in the bolted joint and may cause the connection to fail.

Notice

Controlled construction products with CE marking => SB sets in accordance with DIN EN 15048-1 can be supplied with item prefix numbers: 00594.. (hex head headless screws) and 00595.. (hex head full-thread screws).

ISO 4017 replaces DIN 933 | There is some similarity | Nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22.

Specification
Technical Information
Documents

ISO 4017, steel 8.8U, hot-dip zinc-plated (TZN)

Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
The bolts are ISO-compliant after hot-dip zinc-plating.
The bolts must not be used with nuts that have an oversized thread. This can create problems in the bolted joint and may cause the connection to fail.

Notice

ISO 4017 replaces DIN 933 | There is some similarity | Nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22.

Products specifications

Thread type x nominal diameter (d₁)	M16
Length (l₁)	60 mm
Head height (k₁)	10 mm
External drive (s₁)	WS24
Standards	ISO 4017
Material	Steel
Property class	8.8U
Surface	Hot dip galvanized
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread form	Standard metric thread
Thread design	Full thread
Product class	A
RoHS-compliant	Yes
