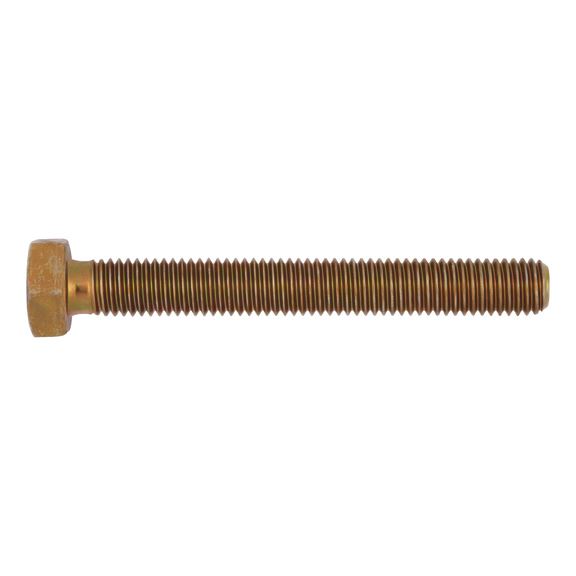

Hexagonal bolt with threading up to head

Article No. 00570625

ISO 4017 steel 8.8 yellow galvanised SCR-HEX-ISO4017-8.8-WS10-(A2C)-M6X25

€6.61 inc. VAT price per 100 PCS

Available on Order
Price may vary

Qty:

+ -

ISO 4017, steel 8.8, galvanised, yellow chromated (A3C)

Notice

ISO 4017 replaces DIN 933 | There is some similarity | Nominal size extended | Width across flats for M10, M12, M14 and M22 changed.

ISO 4017, steel 8.8, galvanised, yellow chromated (A3C)

Notice

ISO 4017 replaces DIN 933 | There is some similarity | Nominal size extended | Width across flats for M10, M12, M14 and M22 changed.

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	25 mm
Head height (k₁)	4 mm
External drive (s₁)	WS10
Standards	ISO 4017
Material	Steel
Property class	8.8
Surface	Yellow galvanised
RoHS-compliant	No
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Full thread
Shaft diameter	6 mm
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	25 mm
Head height (k₁)	4 mm
External drive (s₁)	WS10
Standards	ISO 4017
Material	Steel
Property class	8.8
Surface	Yellow galvanised
RoHS-compliant	No
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Full thread
Shaft diameter	6 mm
Product class	A
