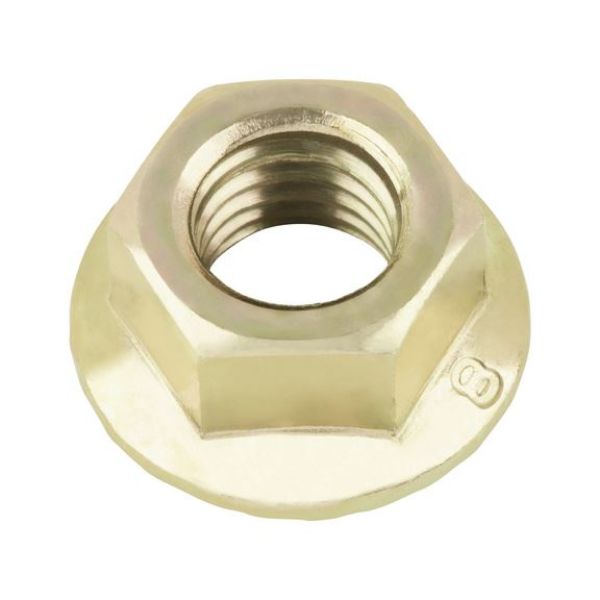

Hexagonal nut with flange

Article No. 039412

DIN 6923 yellow zinc-plated steel 8 locking teeth NUT-SER-SIDIN6923-8-WS18-(A2C)-M12

€0.21 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 6923, steel 8, zinc-plated, yellow chromated (A2C), with locking teeth

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

Specification
Technical Information
Documents

DIN 6923, steel 8, zinc-plated, yellow chromated (A2C), with locking teeth

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

Products specifications

Thread type x nominal diameter (D)	M12
Height (h₁)	12 mm
Flange diameter (d_c)	26 mm
External drive (s₁)	WS18
Material	Steel
Property class	8
Surface	Yellow galvanised
Head details	Ratchet
DIN	Similar to 6923
Thread type	Metric thread
Pitch	1.750 mm
Width across corners (e)	20.03 mm
Nominal diameter	12 mm
