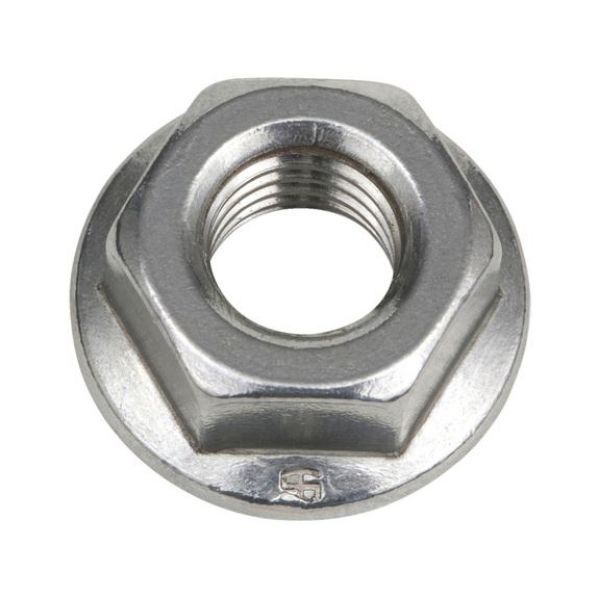

Hexagonal nut with flange

Article No. 038700008

DIN 6923 st. steel A2, plain with locking teeth NUT-SER-SIDIN6923-A2-WS13-M8

€16.52 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Similar to DIN 6923, stainless steel A2, plain, with locking teeth

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (Fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

Specification
Technical Information
Documents

Similar to DIN 6923, stainless steel A2, plain, with locking teeth

Notice

DIN 6923 has been withdrawn and replaced by EN 1661. There is some similarity (Fine thread removed | Width across flats for size M10 changed from 15 mm to 16 mm).

Products specifications

Thread type x nominal diameter (D)	M8
Height (h₁)	8 mm
Flange diameter (d_c)	17.9 mm
External drive (s₁)	WS13
Standards	DIN Similar to 6924
Material	Stainless steel A2
Property class	50
Surface	Bare
RoHS-compliant	Yes
Locking device operating principle	Serration
Locking function	Locking against self-loosening by mechanical interlocking
