Horizontal clamp Basic
>
Horizontal clamp Basic With horizontal base and oil-resistant plastic handle
Previous
Next

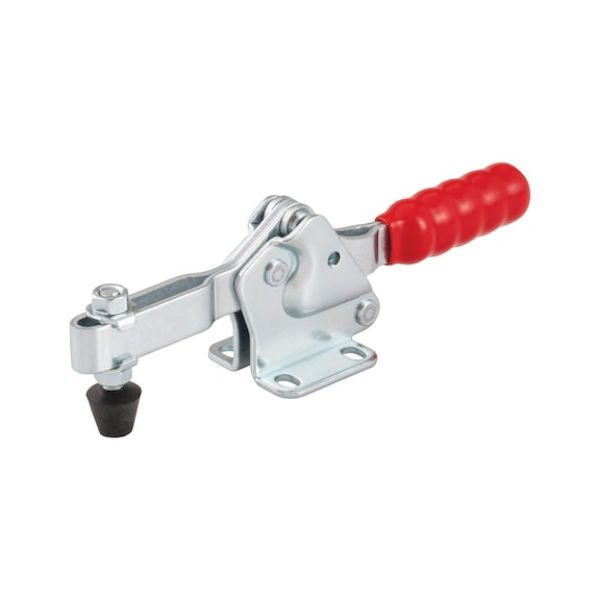

Horizontal clamp Basic With horizontal base and oil-resistant plastic handle
Article No.
071467715
Horizontal clamp Basic QCKCLMP-HORIZONTAL-(0,0-5,0)-L174MM
€36.47 inc. VAT
price per 1 PCS
AVAILABLE
Packaging Unit
*
1
Qty:
+
-
Add to cart
Add to wishlist
Add to compare list
For clamping and releasing workpieces in production or with equipment
Suitable for clamping during welding, drilling, reaming, gluing etc.
Specification
Technical Information
Documents
For clamping and releasing workpieces in production or with equipment
Suitable for clamping during welding, drilling, reaming, gluing etc.
Products specifications
Material
Steel
Material of handle
1-component plastic
Surface
Zinc plated
Width of angled base (b
1
)
40 mm
Length of angled base (b
2
)
38 mm
Bore diameter (d
1
)
5.5 mm
Min./max. hole distance (a
1
)
22-28 mm
Hole distance 2 min./max. (a
2
)
26-26 mm
Height (h
1
)
52 mm
Min./max. clamping height (h
2
)
0-5 mm
Distance 1 (c
1
)
37 mm
Distance 2 (c
2
)
19 mm
Length (l
1
)
174 mm
Arm length (l
2
)
61 mm
Tension force (F1)
1500 N
Opening angle (α)
93 Degree
Thumbscrew size
M6 x 44 mm
Product weight (per item)
239 g
Datasheet
Products specifications
Material
Steel
Material of handle
1-component plastic
Surface
Zinc plated
Width of angled base (b
1
)
40 mm
Length of angled base (b
2
)
38 mm
Bore diameter (d
1
)
5.5 mm
Min./max. hole distance (a
1
)
22-28 mm
Hole distance 2 min./max. (a
2
)
26-26 mm
Height (h
1
)
52 mm
Min./max. clamping height (h
2
)
0-5 mm
Distance 1 (c
1
)
37 mm
Distance 2 (c
2
)
19 mm
Length (l
1
)
174 mm
Arm length (l
2
)
61 mm
Tension force (F1)
1500 N
Opening angle (α)
93 Degree
Thumbscrew size
M6 x 44 mm
Product weight (per item)
239 g
