Interior lining clip Type 2

Article No. 0501121137

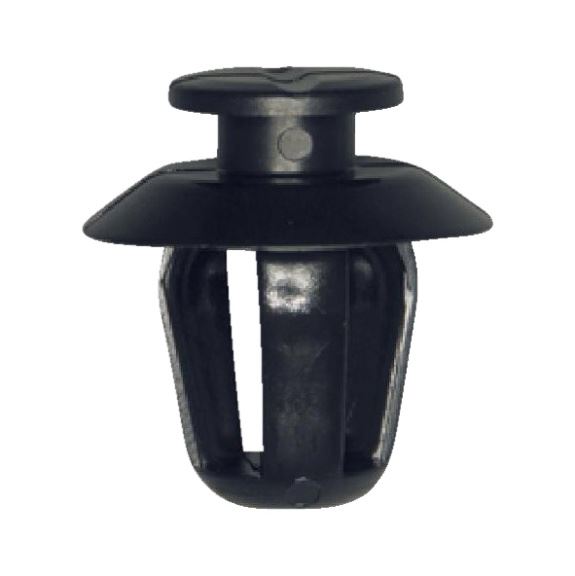

Interior panelling clip, type 2 INPANCLIP-PSA-CITR/PEUG-BLACK

€1.06 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

Foot divided into four parts, head round

Pre-mounted on the trim and then inserted into a corresponding hole on the base component.
Tolerance compensation possible
Removal of the trim possible
Also serves as a seal

Foot divided into four parts, head round

Pre-mounted on the trim and then inserted into a corresponding hole on the base component.
Tolerance compensation possible
Removal of the trim possible
Also serves as a seal

Application area

Fastening of trims to carrier components

Products specifications

Material	Polyoxymethylene
Colour	Black
Min./max. drill hole diameter	9.5-9.5 mm
Min./max. attachment thickness	0.8-0.8 mm
Head diameter	10 mm
Core diameter	6 mm
Grip range head	2.8 mm
Max. width	18 mm
Length below head	14.9 mm
Type of vehicle	Universal
Corresponds to original spare part number	856535

Products specifications

Material	Polyoxymethylene
Colour	Black
Min./max. drill hole diameter	9.5-9.5 mm
Min./max. attachment thickness	0.8-0.8 mm
Head diameter	10 mm
Core diameter	6 mm
Grip range head	2.8 mm
Max. width	18 mm
Length below head	14.9 mm
Type of vehicle	Universal
Corresponds to original spare part number	856535
