Joint bolt clamp W1 - JNTBLTCLMP-DIN3017-W1-W25MM-(91-97MM)

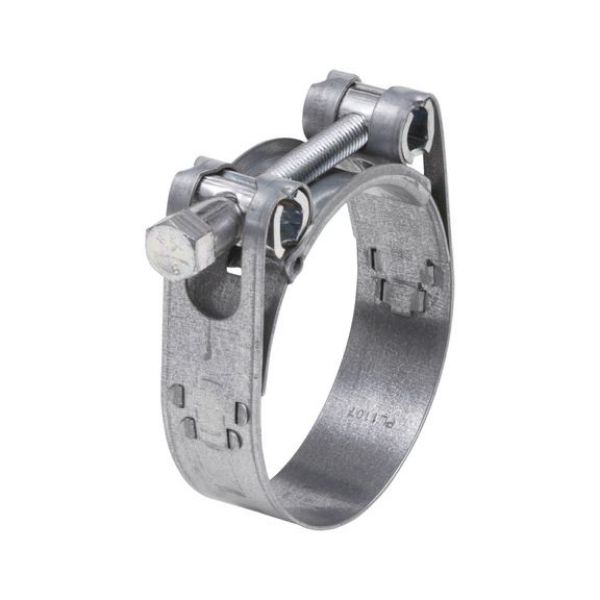

Joint bolt clamp W1

Article No. 0537125094

Joint bolt clamp W1 JNTBLTCLMP-DIN3017-W1-W25MM-(91-97MM)

€3.38 inc. VAT price per 1 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

For hoses with a high level of hardness or inserts made of metal or plastic

Extremely high tightening force

Secure connection, even for hard hoses

Rounded edges/hose bridge

Prevents injury and hose damage

Specification
Application
Technical Information
Documents

For hoses with a high level of hardness or inserts made of metal or plastic

Extremely high tightening force

Secure connection, even for hard hoses

Rounded edges/hose bridge

Prevents injury and hose damage

Application area

Air-conveying pipes, exhaust gas system, clamping/fastening

Products specifications

Material of the clamp band	Steel
Surface of the clamp band (11)	Galvanised
Material of the screw	Steel
Surface of the screw	Galvanised
Min./max. grip range	91-97 mm
Width of band (A)	25 mm
Width across flats	13 mm
Tightening torque	20 Nm
Standards	DIN 3017
RoHS-compliant	Yes

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Products specifications

Material of the clamp band	Steel
Surface of the clamp band (11)	Galvanised
Material of the screw	Steel
Surface of the screw	Galvanised
Min./max. grip range	91-97 mm
Width of band (A)	25 mm
Width across flats	13 mm
Tightening torque	20 Nm
Standards	DIN 3017
RoHS-compliant	Yes
