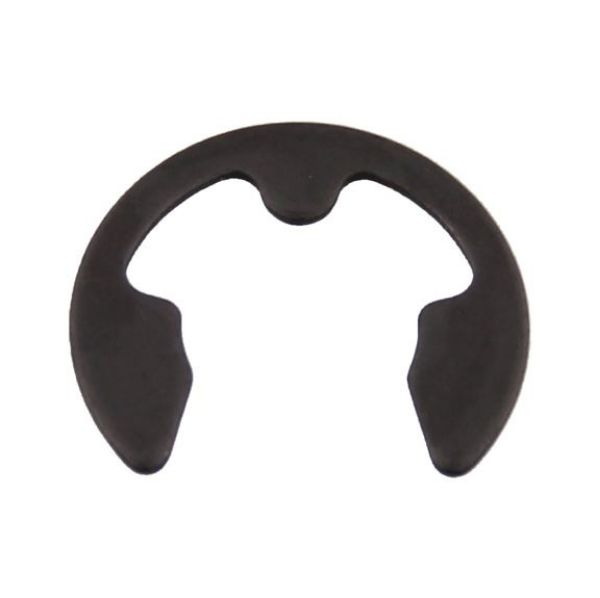

Lock washer for shafts

Article No. 049050

DIN 6799 steel plain WSH-LOK-SHFT-DIN6799-D5,0

€5.10 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

DIN 6799, steel, plain

DIN 6799, steel, plain

Products specifications

Suitable for min./max. shafts	6-8 mm
Suitable for groove diameter	5 mm
Internal diameter (d₁)	4.11 mm
Outer diameter (d₂)	11.3 mm
Thickness (s₁)	0.7 mm
Material	Steel
Surface	Bare
Form	RA
DIN	6799
RoHS-compliant	Yes

Datasheets(1)

CAD Data (available after login)

Products specifications

Suitable for min./max. shafts	6-8 mm
Suitable for groove diameter	5 mm
Internal diameter (d₁)	4.11 mm
Outer diameter (d₂)	11.3 mm
Thickness (s₁)	0.7 mm
Material	Steel
Surface	Bare
Form	RA
DIN	6799
RoHS-compliant	Yes
