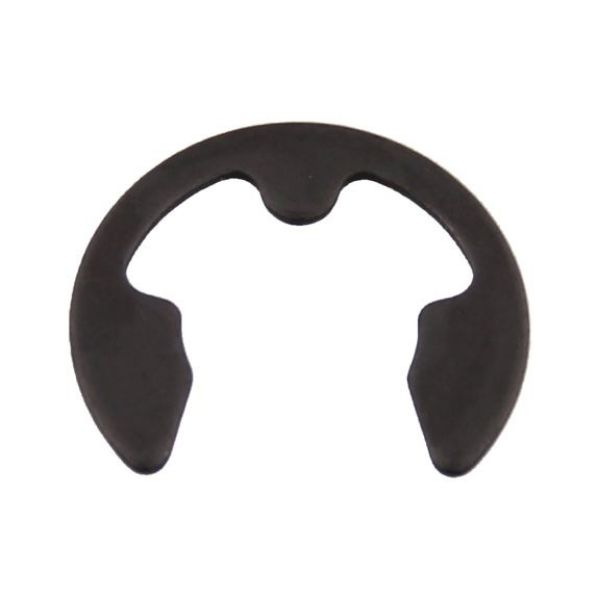

Lock washer for shafts

Article No. 049070

DIN 6799 steel plain WSH-LOK-SHFT-DIN6799-D7,0

€8.28 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

DIN 6799, steel, plain

DIN 6799, steel, plain

Products specifications

Suitable for min./max. shafts	8-11 mm
Suitable for groove diameter	7 mm
Internal diameter (d₁)	5.84 mm
Outer diameter (d₂)	14.3 mm
Thickness (s₁)	0.9 mm
Material	Steel
Surface	Bare
Form	RA
DIN	6799
RoHS-compliant	Yes
