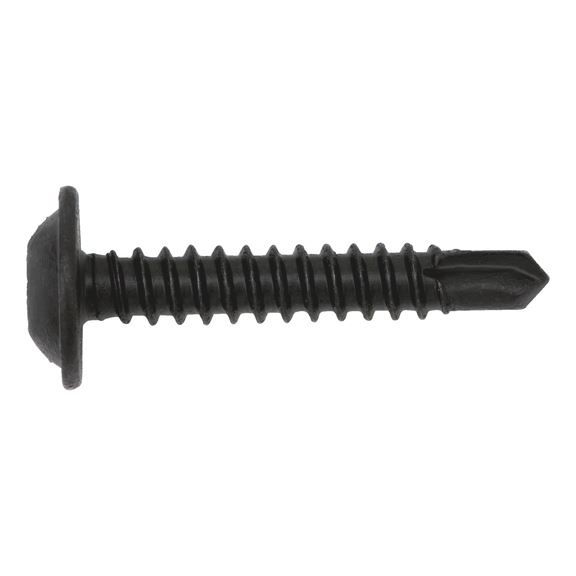

Pan head drilling screw with collar and H recessed head pias®

Article No. 02182425

pias steel black galv. pan head flange H SCR-DBIT-PANHD-FLG-H2-(A2S)-4,2X25 ZEBRA PIAS

€8.26 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

Black galvanized steel (A2S), with Phillips head.

Drilling, threading, screwing-in — all in one work step

Therefore considerably reduced time and effort

Exact drilling diameter for each screw connection

Prevents installation errors

Notice

The pressed-on flange generates a lower surface pressure, which helps to prevent stress cracks

Contact pressure during use approx. 100 N/screw in with depth stop if necessary

Galvanized drilling screws may only be used where dampness is not to be expected.

For fasteners with a construction permit, the permit, and in particular Part 2 "Special regulations", must always be observed.

Black galvanized steel (A2S), with Phillips head.

Drilling, threading, screwing-in — all in one work step

Therefore considerably reduced time and effort

Exact drilling diameter for each screw connection

Prevents installation errors

Notice

The pressed-on flange generates a lower surface pressure, which helps to prevent stress cracks

Contact pressure during use approx. 100 N/screw in with depth stop if necessary

Galvanized drilling screws may only be used where dampness is not to be expected.

For fasteners with a construction permit, the permit, and in particular Part 2 "Special regulations", must always be observed.

Application area

The self-drilling screw for fastening plastic and thin sheet metal to metal sub-structures.

Products specifications

Material	Steel
Surface	Black, galvanised
Nominal diameter (d₁)	4.2 mm
Length (l₁)	25 mm
Head diameter (d_k)	11 mm
Head height (k₁)	2.6 mm
Drill tip length (l_p)	3.7 mm
Other standard	Company standard
Head type	Pan head
Internal drive	H2
Thread type	Self-tapping screw thread
For min. substructure thickness	1.5 mm
Max. material thickness to be drilled through (metal)	3.5 mm
Max. attachment thickness (l_B)	18 mm
Min./max. recommended installation speed (idling)	1700-2500 U/min(rpm)

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Material	Steel
Surface	Black, galvanised
Nominal diameter (d₁)	4.2 mm
Length (l₁)	25 mm
Head diameter (d_k)	11 mm
Head height (k₁)	2.6 mm
Drill tip length (l_p)	3.7 mm
Other standard	Company standard
Head type	Pan head
Internal drive	H2
Thread type	Self-tapping screw thread
For min. substructure thickness	1.5 mm
Max. material thickness to be drilled through (metal)	3.5 mm
Max. attachment thickness (l_B)	18 mm
Min./max. recommended installation speed (idling)	1700-2500 U/min(rpm)
