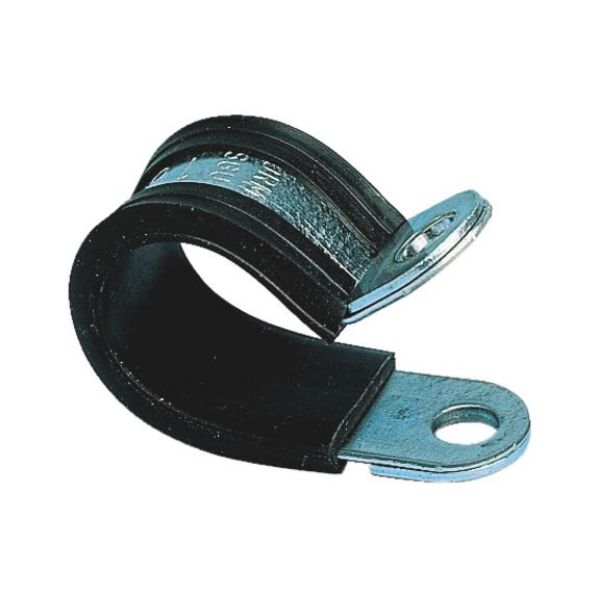

Pipe and fastening clamp Multifix

Article No. 05423515

Pipe and fastening clamp Multifix steel/EPDM PIPCLMP-RSGU-DIN3016-EPDM-BLACK-W15-D35

€1.18 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

The fastening clamp with rubber profile

Reinforced tabs

The support washers prevent the tabs from tearing under extreme mechanical stress

Rubber profile

Vibration protection
Protection against seepage
Sound absorbent

Resistant to:

Abrasion (good)
Weather (very good)
Ozone (very good)
Ageing (very good)
Light (good)
Alcohol (good)
Acid (good)
Alkali (good)

Specification
Application
Technical Information
Documents

The fastening clamp with rubber profile

Reinforced tabs

The support washers prevent the tabs from tearing under extreme mechanical stress

Rubber profile

Vibration protection
Protection against seepage
Sound absorbent

Resistant to:

Abrasion (good)
Weather (very good)
Ozone (very good)
Ageing (very good)
Light (good)
Alcohol (good)
Acid (good)
Alkali (good)

Application area

For clamping and fastening pipes, cables, cable harnesses, protective pipes, hoses and other lines on engine bases, bodywork, beams, assemblies, machines etc.

Products specifications

Width (B)	15 mm
Nominal diameter (d)	35 mm
Flange hole (d1)	M6
Distance centre of pipe to centre of hole (S)	28.7 mm
Standards	DIN 3016
Material	Steel
Surface	Galvanised
Material of the rubber profile	EPDM
Colour of rubber profile	Black
Shore A hardness	70 +/- 5
Min./max. temperature resistance	-40 to 120 °C
