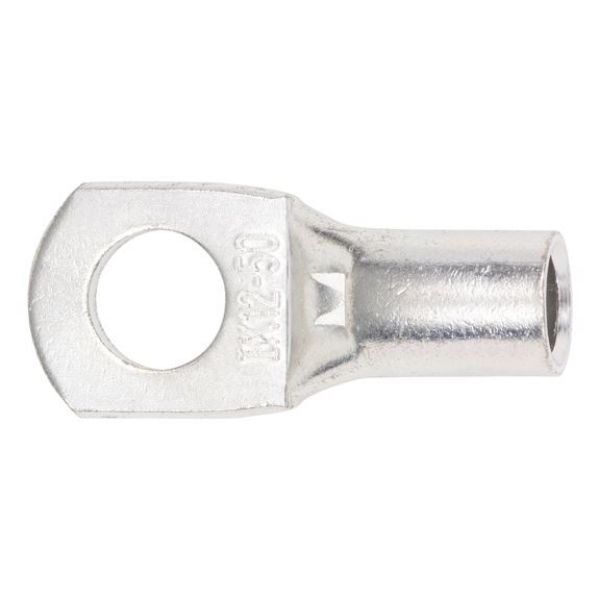

Pipe cable lug with inspection hole

Article No. 096725012

Tubular cable lug with sight opening (common) PIPCBLLUG-INSPHO-CU-(J2N)-M12-50,0SMM

€2.07 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

Common (similar to DIN)

Notice

The user must check the inserted cable (by means of a pull-out test, if necessary).

Common (similar to DIN)

Notice

The user must check the inserted cable (by means of a pull-out test, if necessary).

Products specifications

Wire cross section	50 mm²
Flange hole	M12
Wire diameter (d1)	10 mm
Diameter of hole (d2)	13.2 mm
Distance between sleeve end and centre of hole (e)	40 mm
Sleeve length (a)	19 mm
Width (B)	23 mm
Max. temperature resistance	125 °C
Material	Electrolytic copper
Surface	Tin-plated
