Plastic angle connector

Article No. 08850306

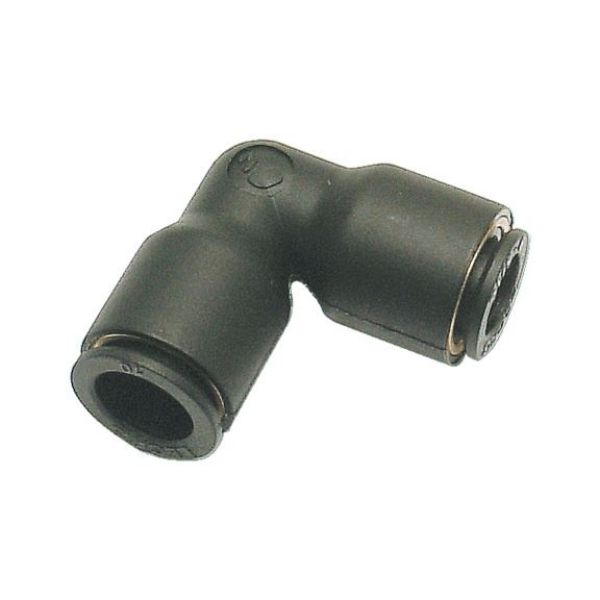

Angle connector plastic QCKPLGCON-(ANGL-CON)-PLA-D6MM

€5.50 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Plug connector for pneumatic control lines

Operating temperature: -20°C to +80°C
Permissible operating pressure max. 20 bar

Notice

Above a certain length, pipes "vibrate", irrespective of whether they are made of steel, copper or plastic. Therefore, all pipes should be secured on the body or on the frame using pipe clamps, rubberised if possible, wherein the distance should be 1 m and must not exceed 1.20 m.

Specification
Application
Technical Information
Documents

Plug connector for pneumatic control lines

Operating temperature: -20°C to +80°C
Permissible operating pressure max. 20 bar

Notice

Application area

Suitable for plastic hoses of different material qualities. Not for brake systems, only for secondary consumers.

Instructions

Installation:

Insert polyamide pipe into the quick-fit plug while overcoming slight resistance of the O-ring and pressing in pipe as far as it will go

Dismantling:

Press clamping ring against connection and pull out pipe

Products specifications

Outer diameter of pipe (T)	6 mm
Length (l)	22.5 mm
Material of the housing	Plastic
Gasket material	Nitrile
Min./max. temperature conditions	-20 to 80 °C
Max. working pressure	20 bar

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications

Outer diameter of pipe (T)	6 mm
Length (l)	22.5 mm
Material of the housing	Plastic
Gasket material	Nitrile
Min./max. temperature conditions	-20 to 80 °C
Max. working pressure	20 bar
