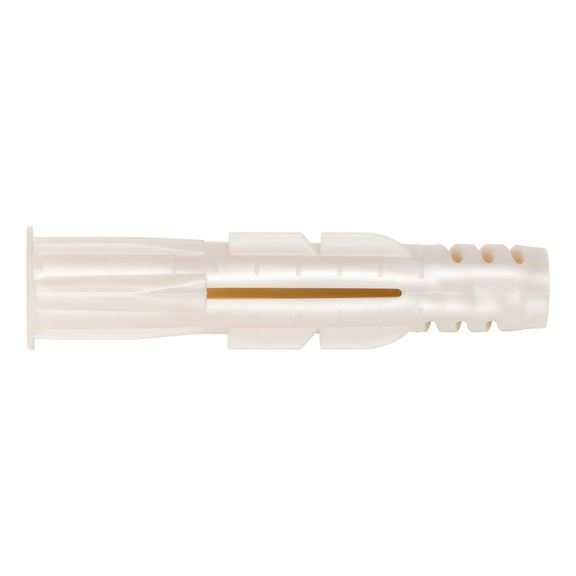

Plastic multi-purpose ZEBRA Shark® anchor with collar

Article No. 090600737

Plastic multi-purpose anchor, Shark, with collar DWL-PLA-W.COLLAR-7X37 ZEBRA-SHARK

€0.06 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

Universal anchor for fixtures in almost all building materials (low load range)

Fully resistant to rotting, weathering and ageing
Thermally stable from -40°C to +100°C
Colour: Mother-of-pearl white
Pre-formed thread means low insertion torque for WÜPOFAST screw
Longitudinal locking edges prevent rotation
A single screw diameter can be used, regardless of the application
Expanding segments knot together or fold out for positive locking in perforated brick/cavity walls
Pre-formed thread in head
Three-way division for anchorage via positive locking or friction locking
Wings act as anti-rotation device in solid or hollow block brick
For mounting, we recommend the ASSY-D plug screw

Universal anchor for fixtures in almost all building materials (low load range)

Fully resistant to rotting, weathering and ageing
Thermally stable from -40°C to +100°C
Colour: Mother-of-pearl white
Pre-formed thread means low insertion torque for WÜPOFAST screw
Longitudinal locking edges prevent rotation
A single screw diameter can be used, regardless of the application
Expanding segments knot together or fold out for positive locking in perforated brick/cavity walls
Pre-formed thread in head
Three-way division for anchorage via positive locking or friction locking
Wings act as anti-rotation device in solid or hollow block brick
For mounting, we recommend the ASSY-D plug screw

Application area

Can be used with the maximum screw diameter in solid and hollow block brick to ensure good holding power

For use with stud screws, hooks, ring bolts, WÜPOFAST screws, ECOFAST screws, wood screws (e.g. ASSY-D)

Products specifications

Anchor diameter	7 mm
Material	PP - Polypropylene
Required screw diameter	5 mm
Anchor length (l)	37 mm
Nominal drill-bit diameter (d 0)	17 mm
Drill hole depth (t)	45 mm
Embedding depth (h s)	35 mm
Min. required screw diameter	5 mm
Required screw length (l s)	Thickness of the add-on part (+ plaster/insulation thickness) + anchor length + screw diameter
Max. attachment height (d a) - condition	Dependent on screw length
