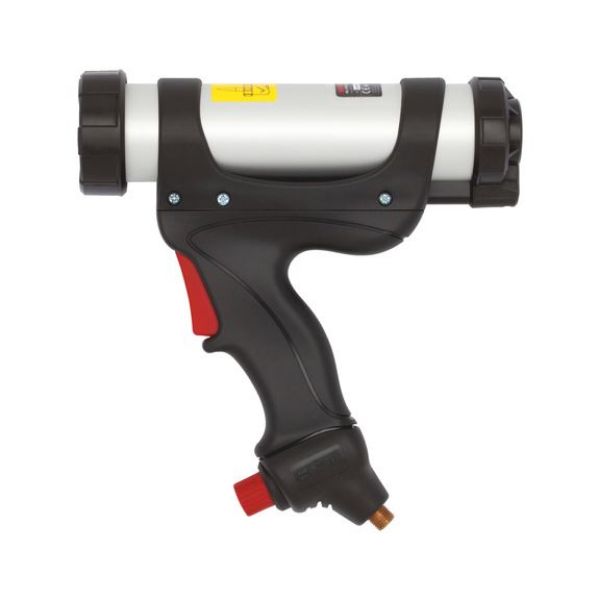

Pneumatic application gun Juniorfix

Article No. 0703891310
Pneumatic application gun, Juniorfix CARTGUN-PN-JUNIORFIX-310ML MASTER
€247.80 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
Powerful and lightweight pneumatic application gun for applying products in cartridges. Ideally suited for adhesives and sealants with high and low viscosities.

Easy to work with

Lightweight, compact and ergonomic design

Rotary pressure controller on handle for slow and fast extrusion

Additional fine regulation of the flow speed via trigger.

Optimum movement

Damper on quick-trigger valve

Protection of e.g. air supply components and simple cleaning

Fully enclosed housing

Notice

The average consumption for pneumatic application guns is approx. 7.2 litres/minute.

Caution: The maximum working pressure for applying sealants is 6 bar.

The usage instructions are recommendations based on the tests we have conducted and based on our experience; carry out your own tests before each application. Due to the large number of applications and storage and processing conditions, we do not assume any liability for a specific application result. Insofar as our free customer service provides technical information or acts as an advisory service, no responsibility is assumed by this service except where the advice or information given falls within the scope of our specified, contractually agreed service or the advisor was acting deliberately. We guarantee consistent quality of our products. We reserve the right to make technical changes and further develop products.

2 Years Warranty on manufacturing and material defects

Excluded are damages caused by improper use, overloading or failure to observe the operating instructions.

Powerful and lightweight pneumatic application gun for applying products in cartridges. Ideally suited for adhesives and sealants with high and low viscosities.

Easy to work with

Lightweight, compact and ergonomic design

Rotary pressure controller on handle for slow and fast extrusion

Additional fine regulation of the flow speed via trigger.

Optimum movement

Damper on quick-trigger valve

Protection of e.g. air supply components and simple cleaning

Fully enclosed housing

Notice

The average consumption for pneumatic application guns is approx. 7.2 litres/minute.

Caution: The maximum working pressure for applying sealants is 6 bar.

The usage instructions are recommendations based on the tests we have conducted and based on our experience; carry out your own tests before each application. Due to the large number of applications and storage and processing conditions, we do not assume any liability for a specific application result. Insofar as our free customer service provides technical information or acts as an advisory service, no responsibility is assumed by this service except where the advice or information given falls within the scope of our specified, contractually agreed service or the advisor was acting deliberately. We guarantee consistent quality of our products. We reserve the right to make technical changes and further develop products.

2 Years Warranty on manufacturing and material defects

Excluded are damages caused by improper use, overloading or failure to observe the operating instructions.

Products specifications
Suitable for 310 ml cartridge
Flow capacity 7.2 l/min
Length 238 mm
Connection thread 1/4 inch
Weight of machine 0.47 kg
Max. working pressure 10 bar
Products specifications
Suitable for 310 ml cartridge
Flow capacity 7.2 l/min
Length 238 mm
Connection thread 1/4 inch
Weight of machine 0.47 kg
Max. working pressure 10 bar
