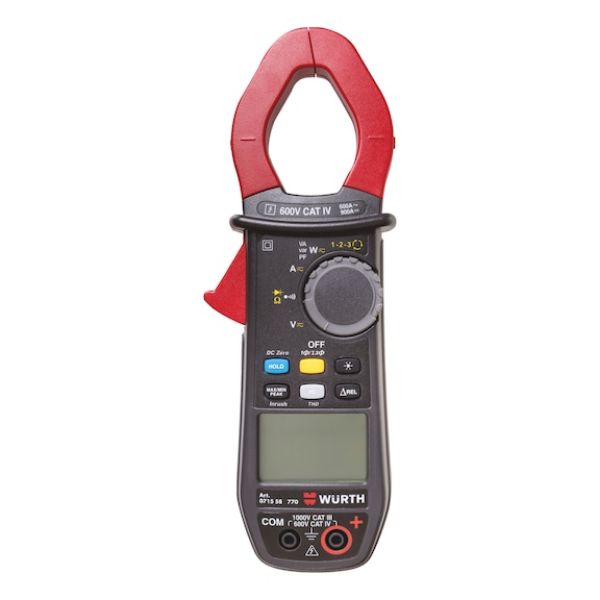

Professional multi-purpose measuring pliers

Article No. 071558770

AC/DC clamp meter professional F205 CLMPM-(PROF F205)

€743.40 inc. VAT price per 1 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

The ideal tool for any use on site. Contains all necessary measuring functions in one compact device. A measuring instrument for all cases.

Measurement of current

AC, DC, AC+DC

Measurement of voltage

AC, DC, AC+DC

Power measurement

Active power, apparent power, reactive power, power factor (single-phase and total three-phase current)

Measurement of resistance, frequency
Audible continuity testing, diode test
Determination of phase sequence of external leads

Innovative TRUE INRUSH function for measuring startup current.

The startup current of a motor can be established easily, as can the current requirement of a plant that supplies a series of running machines.
The current clamp automatically detects the signal type and the present current consumption of a plant and adapts the detection and measuring algorithms to the measured overcurrent.

Many more features

HOLD, MIN/MAX/PEAK, ΔREL

Large backlit LCD display for optimum readability
Resolution of 6000 digits for high accuracy
Automatic range selection, AC/DC detection, auto power off
Clearly assigned function keys, 1 key = 1 function
Ergonomic "one-hand operation" thanks to optimally positioned rotary switches

Notice

Refer to the technical data sheet for a detailed description of the innovative functions and measured values.

Specification
Application
Technical Information
Documents

The ideal tool for any use on site. Contains all necessary measuring functions in one compact device. A measuring instrument for all cases.

Measurement of current

AC, DC, AC+DC

Measurement of voltage

AC, DC, AC+DC

Power measurement

Active power, apparent power, reactive power, power factor (single-phase and total three-phase current)

Measurement of resistance, frequency
Audible continuity testing, diode test
Determination of phase sequence of external leads

Innovative TRUE INRUSH function for measuring startup current.

The startup current of a motor can be established easily, as can the current requirement of a plant that supplies a series of running machines.
The current clamp automatically detects the signal type and the present current consumption of a plant and adapts the detection and measuring algorithms to the measured overcurrent.

Many more features

HOLD, MIN/MAX/PEAK, ΔREL

Large backlit LCD display for optimum readability
Resolution of 6000 digits for high accuracy
Automatic range selection, AC/DC detection, auto power off
Clearly assigned function keys, 1 key = 1 function
Ergonomic "one-hand operation" thanks to optimally positioned rotary switches

Notice

Refer to the technical data sheet for a detailed description of the innovative functions and measured values.

Application area

For applications in the low-voltage range at small and medium powers, such as maintenance of electrical installations in service or industry, and for analysis and dimensioning of current supplies, air conditioning and heating installations.

Products specifications

Display	6000 digits
Enclosure diameter	34 mm
Min./max. current measuring range	0.15 A/AC-600 A/AC
Min./max. current measuring range 2	0.15 A/DC-900 A/DC
Min./max. current measuring range 3	0.15 A/AC/DC-600 A/AC/DC
Min./max. voltage measuring range	0.15 V/AC-1000 V/AC
Min./max. voltage measuring range 2	0.15 V/DC-1400 V/DC
Min./max. voltage measuring range 3	0.15 V/AC/DC-1000 V/AC/DC
Min./max. effective power measuring range	1 W-600 kW
Min./max. reactive power measuring range	1 var-600 kvar
Min./max. apparent power measuring range	1 VA-600 kVA
Min./max. electrical-resistance measuring range	0.1 Ohm-59.99 kOhm
Overvoltage protection category	CAT IV/600 V
IP protection class	IP 40
Length x width x height	220 x 80 x 34 mm
Battery designation	9 V 6LR61
Number of rechargeable batteries/batteries	1 PCS
