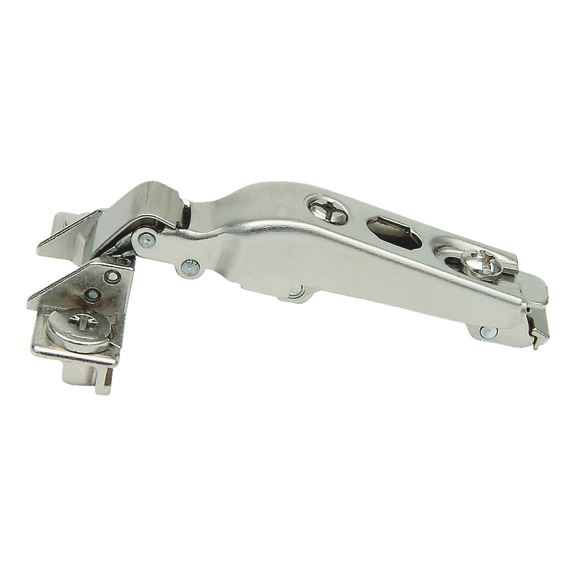

Profile frame hinge, Nexis click-on 94 AL

Article No. F015072801

Concealed hinge Nexis 94 Click-on aluminium HNGE-NEXCLON-ALUPRFL-INRT-(NI)-95DGR GRASS NEXIS CLICK-ON

€4.15 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

For recessing aluminium profile frame doors.

Opening angle: 94°

Secures into system groove on the aluminium frame using the eccentric fitting

Easy to place into the section without drilling or milling

Flexible positioning by sliding into the groove
Quick to install the hinge

Specified dimensions not binding. Subject to technical changes!

Specification
Technical Information

For recessing aluminium profile frame doors.

Opening angle: 94°

Secures into system groove on the aluminium frame using the eccentric fitting

Easy to place into the section without drilling or milling

Flexible positioning by sliding into the groove
Quick to install the hinge

Specified dimensions not binding. Subject to technical changes!

Products specifications

Door stop	Enclosed
Crank	15 mm
Automatic	Yes
Type of assembly	Groove mounting
Opening angle	94 Degree
Material	Zamak
Surface	Nickel-plated

Products specifications

Door stop	Enclosed
Crank	15 mm
Automatic	Yes
Type of assembly	Groove mounting
Opening angle	94 Degree
Material	Zamak
Surface	Nickel-plated
