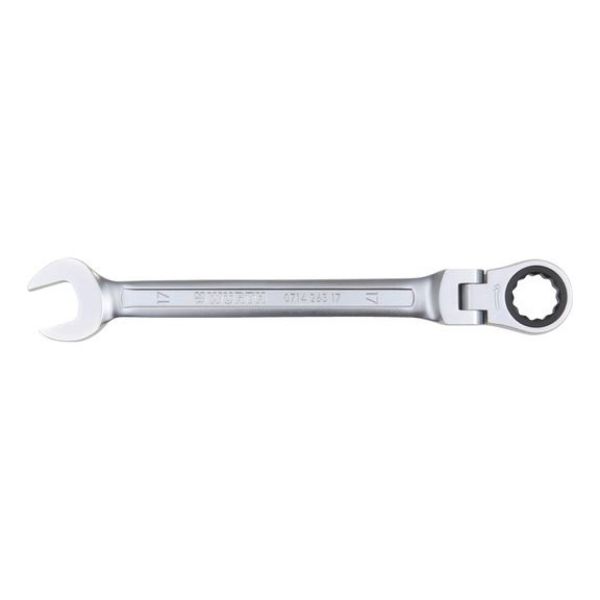

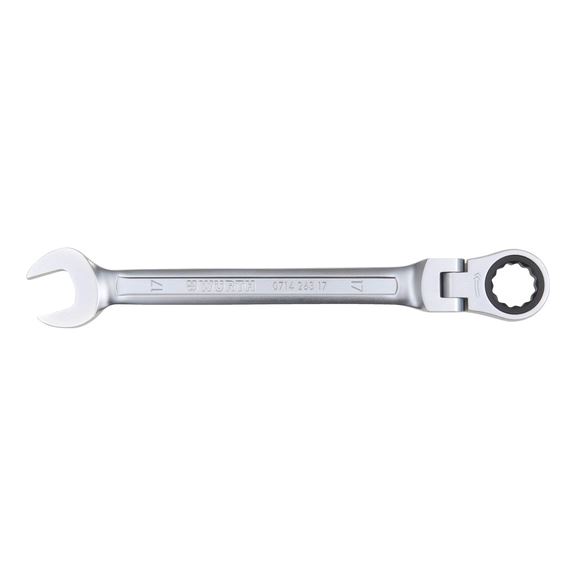

Ratchet combination wrench

Article No. 071426310

Ratchet combination wrench flexible mat RTCHCOMBIWRNCH-FLEXIBLE-WS10 ZEBRA

€24.24 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Flexible ratchet head provides greater free space for fingers or for negotiating obstacles

Very rugged, strong ratchets for high tightening torques
Design: Metric
Drive: Ring side POWERDRIV bi-hexagon, fine-tooth 72 teeth
Standard: Max. Torque according to DIN 899
Material: Chromium-vanadium steel
Surface: Chrome-plated, matt satin finish
Geometry: Head offset 15°, ring side 180° joint, strong heads for heavy-duty applications

Notice

This special tool may only be subjected to the maximum torque. For this reason, the wrenches are only suitable for loosening bolts to a limited extent.

Specification
Application
Technical Information
Documents

Flexible ratchet head provides greater free space for fingers or for negotiating obstacles

Very rugged, strong ratchets for high tightening torques
Design: Metric
Drive: Ring side POWERDRIV bi-hexagon, fine-tooth 72 teeth
Standard: Max. Torque according to DIN 899
Material: Chromium-vanadium steel
Surface: Chrome-plated, matt satin finish
Geometry: Head offset 15°, ring side 180° joint, strong heads for heavy-duty applications

Notice

This special tool may only be subjected to the maximum torque. For this reason, the wrenches are only suitable for loosening bolts to a limited extent.

Application area

Loosen bolts using the open end and tighten using the ratchet mechanism on the ring side

Products specifications

Width across flats (SW)	10 mm
Thickness of jaw (a1)	5 mm
Width of jaws (outside) (b1)	20.9 mm
Ring thickness (a2)	7.3 mm
External diameter of ring (d)	19.6 mm
Max. torque (F max.)	59 Nm
Length (l)	159 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications

Width across flats (SW)	10 mm
Thickness of jaw (a1)	5 mm
Width of jaws (outside) (b1)	20.9 mm
Ring thickness (a2)	7.3 mm
External diameter of ring (d)	19.6 mm
Max. torque (F max.)	59 Nm
Length (l)	159 mm
