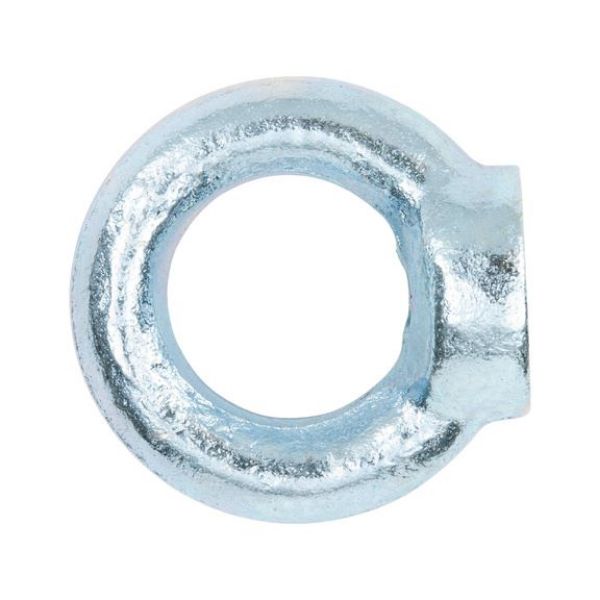

Ring nut

Article No. 039598

DIN 582 galvanized steel C15E NUT-RG-DIN582-C15E-(A2K)-FORGED-M8

€1.86 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

DIN 582 galvanized steel C15E, blue passivated (A2K)

Notice

Please take note of the information in the installation instructions prior to use

DIN 582 galvanized steel C15E, blue passivated (A2K)

Notice

Please take note of the information in the installation instructions prior to use

Products specifications

Thread type x nominal diameter (D)	M8
Internal diameter (d₁)	20 mm
Outer diameter (d₂)	36 mm
Diameter of contact surface (d₃)	20 mm
Material	Case hardening steel, 1.1141, C15E
Surface	Galvanised
Load capacity (F max)	140 kg
Nominal diameter	8 mm
RoHS-compliant	Yes

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Certificates/Documents(2)

Products specifications

Thread type x nominal diameter (D)	M8
Internal diameter (d₁)	20 mm
Outer diameter (d₂)	36 mm
Diameter of contact surface (d₃)	20 mm
Material	Case hardening steel, 1.1141, C15E
Surface	Galvanised
Load capacity (F max)	140 kg
Nominal diameter	8 mm
RoHS-compliant	Yes
