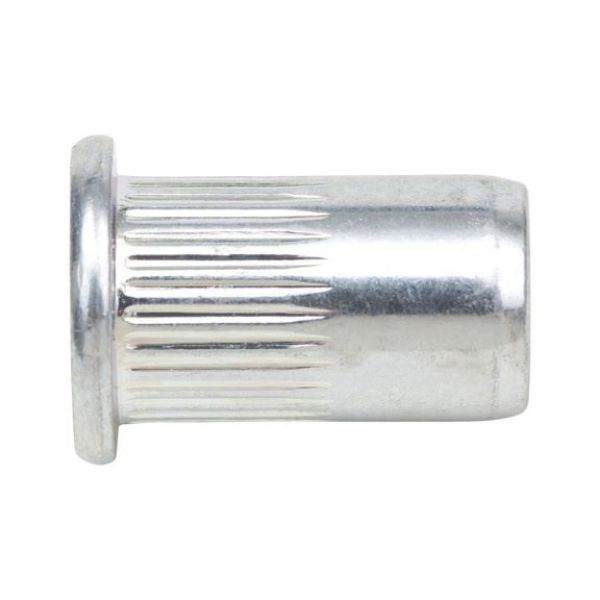

Rivet nut

Article No. 094210010

Stainless steel A2 truss head knurled shank NUT-RIV-MHD-(0,5-3,0)-A2-19,0-M10

€2.10 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

With knurled shank and round pan head, A2 stainless steel

With knurled shank and round pan head, A2 stainless steel

Products specifications

Thread type x nominal diameter (D)	M10
Head diameter (d₁)	16 mm
Outer diameter (d₂)	12.9 mm
Length (l₁)	19 mm
Head height (k₁)	2.1 mm
Min./max. grip range (s₁)	0,5-3,0 mm
Material	Stainless steel A2
Surface	Plain
Head type	Truss head
Drill hole diameter	13 mm
Tensile fracture load	35280 N
Shear-fracture load	8800 N
Max. tightening torque	39 Nm

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (D)	M10
Head diameter (d₁)	16 mm
Outer diameter (d₂)	12.9 mm
Length (l₁)	19 mm
Head height (k₁)	2.1 mm
Min./max. grip range (s₁)	0,5-3,0 mm
Material	Stainless steel A2
Surface	Plain
Head type	Truss head
Drill hole diameter	13 mm
Tensile fracture load	35280 N
Shear-fracture load	8800 N
Max. tightening torque	39 Nm
